meetsensor distributes a full range of products including the American OTTO JHM - Medium Industrial Hall Effect Joystick, etc., guaranteeing new and original authentic products, and can provide product model pictures, parameters, technical data and official information.

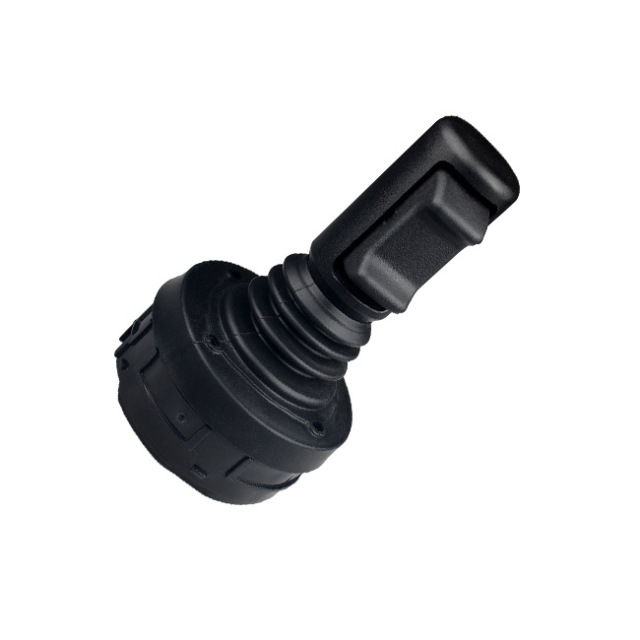

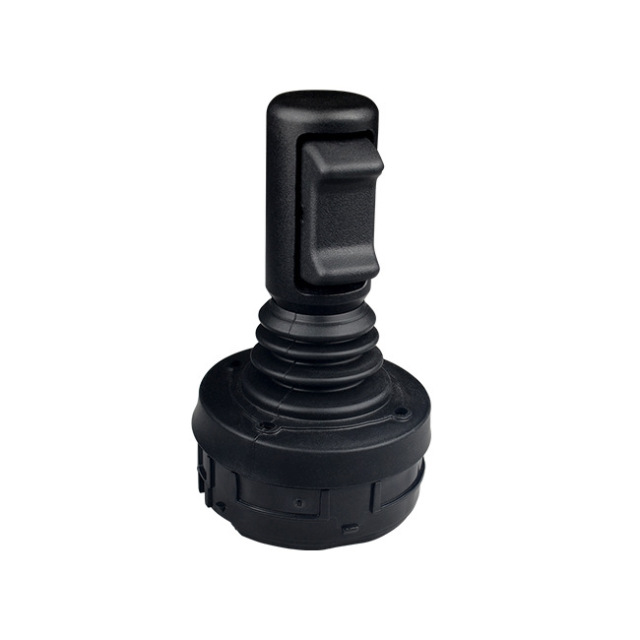

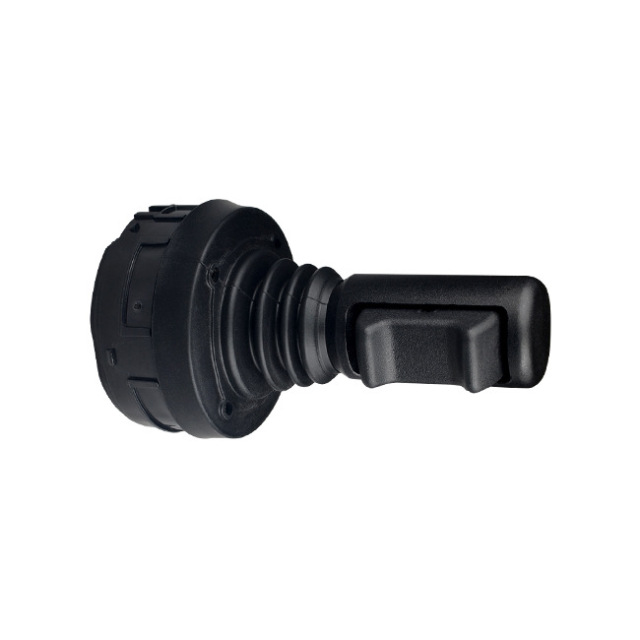

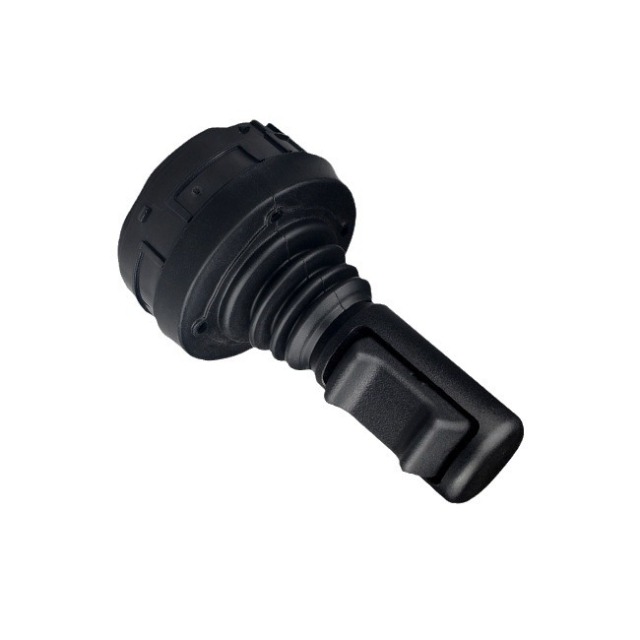

American TTO Medium Hall Effect Joystick JHM-2181GG1 Product Details:
The JHM Series mid-size joystick is a versatile device for armrests, panels or any other location where a shallow depth joystick is required. It uses Hall Effect technology for unmatched life and reliability. The electronics are sealed to IP68S and have an operating life of 10 million cycles in all directions.
The standard JHM offers 18 handle styles, 18 output configuration choices, and 9 gating options.
Choose from CANopen, CAN J1939, USB, analog, and digital outputs; redundant sensors; and a variety of switch and handle styles, such as ball handles, locking handles, and handles with buttons, rockers, and 5-button keypads.
Gating options include single axis, dual axis, friction Y axis and various omnidirectional choices including omnidirectional round smooth touch, omnidirectional on-axis and off-axis guided touch and omnidirectional square on-axis guided touch.
Features:
l Designed for handrail and panel mounting
Shorter depth behind the panel
l Non-contact Hall effect technology
l Electronic components are sealed to IP68S
l Up to 10 million operating cycles in all directions
l A variety of handles and switches are available
l Provide redundant sensors
l Multiple output configurations
l Output options: CANopen®, CAN J1939, USB, PWM, serial and analog output
l Multiple gating options
l RoHS compliant
Founded in 1961, OTTO Engineering is located in Carpentersville, Illinois, USA. It has been designing, developing and manufacturing control products and communication accessories for 60 years. Products are specially designed to meet customers' demanding application requirements.
OTTO is a vertically integrated manufacturer with in-house injection molding, stamping, CNC machining, cable assembly and cable overmolding capabilities. It also has strong mechanical, electrical and RF design engineering capabilities, test laboratories and computer-controlled production line testing capabilities.
OTTO by OTTO Controls and OTTO Communications Both divisions sell its products.
control
Our switches and control handles are at work every day in some of the most demanding applications including heavy equipment, aerospace, marine, medical, communications and other demanding markets.
Communications
OTTO Communications specializes in accessories for the two-way radio market including surveillance kits, wireless accessories, light and heavy duty headsets, speaker microphones, tactical, fire and hazmat communications equipment.
