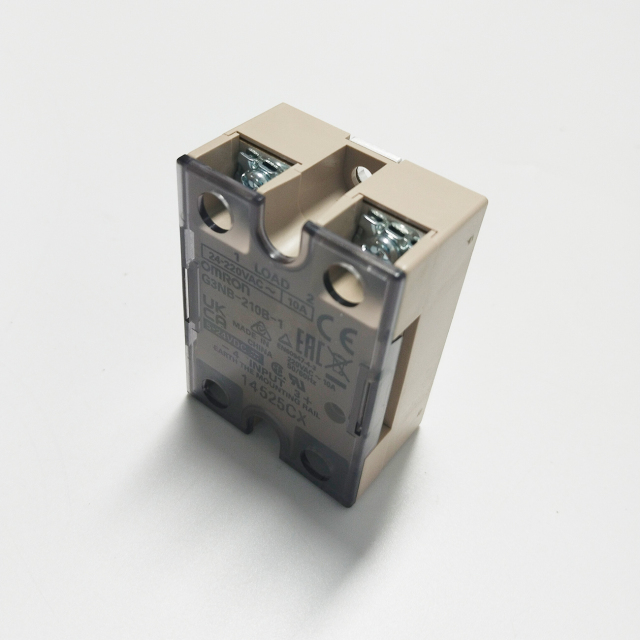

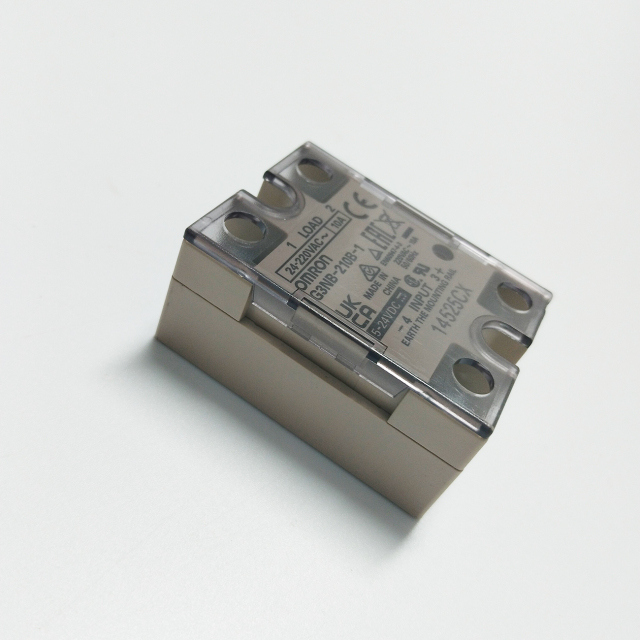

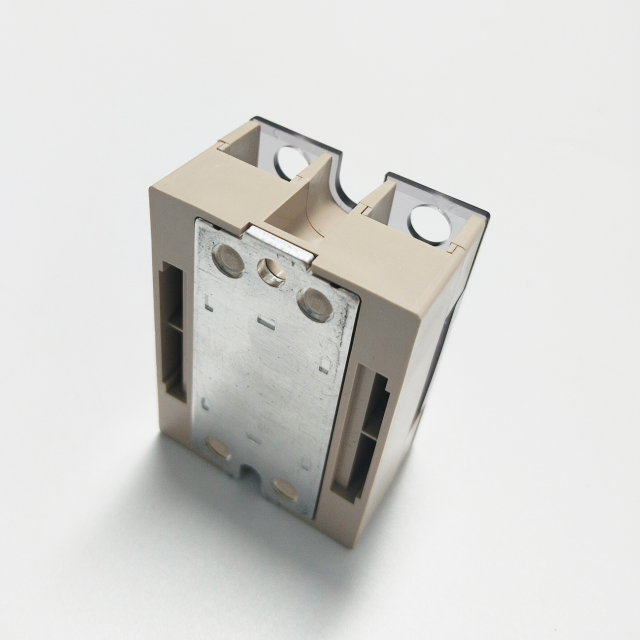

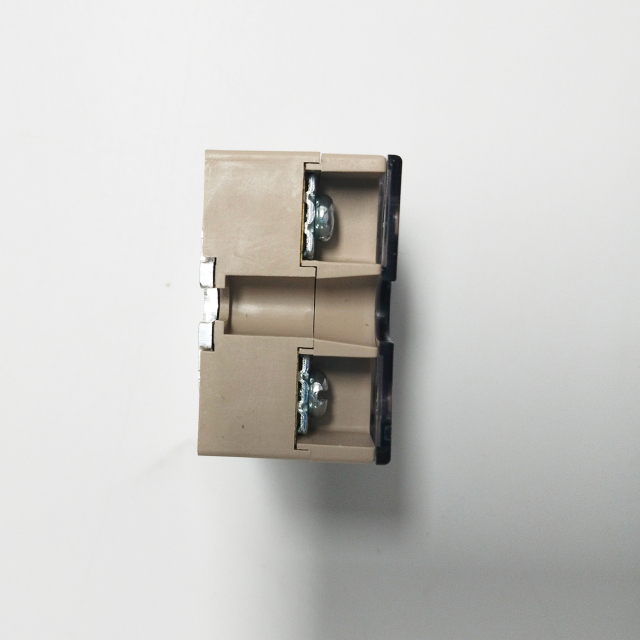

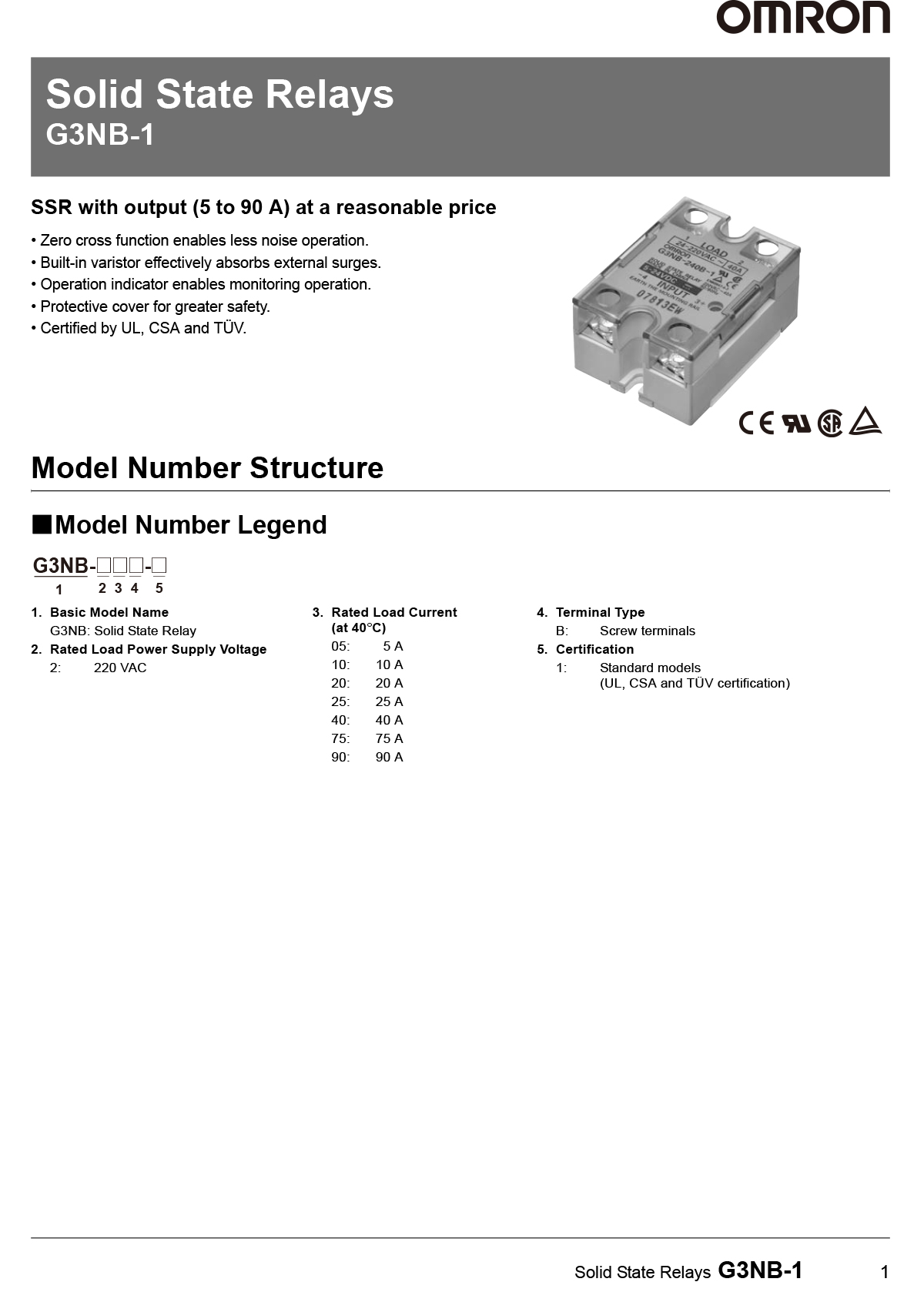

Product Features：SSR with output capacity ranging from 5 to 90A
Zero-crossing function reduces switching noise.
Built-in varistor effectively absorbs external surge voltage.
Equipped with operation indicator for running status monitoring.
Comes with protective cover for enhanced safety.
UL, CSA and TÜV certifications approved.

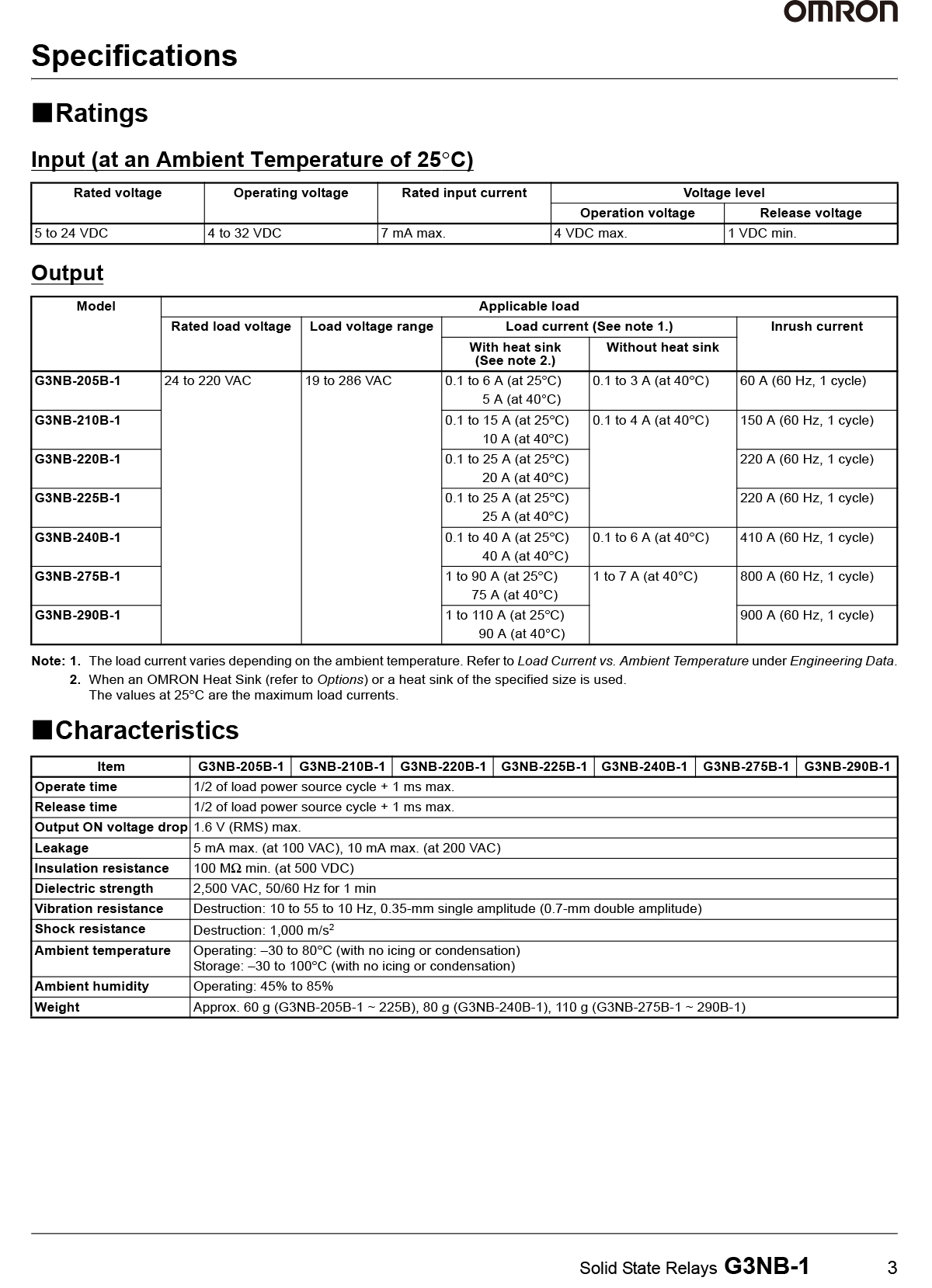

Electrical Specifications：Rated Input Voltage: DC5~24V
Operate Voltage: DC4~32V
Rated Input Current: 7mA max
Voltage Level - Turn-on Voltage: DC4V max
Voltage Level - Drop-out Voltage: DC1V min
Rated Load Voltage: AC24～220V
Load Voltage Range: AC19～286V
Load Current (with heat sink): 0.1～15A (at 25℃), 10A (at 40℃)
Load Current (without heat sink): Not applicable
Surge Current: 150A (60Hz, 1 cycle)
