Meetsensor distributes the full range of products including the German SICK slot sensor WFS series.
We guarantee brand new, original and authentic products, and can provide product model pictures, parameters, technical data and official information.

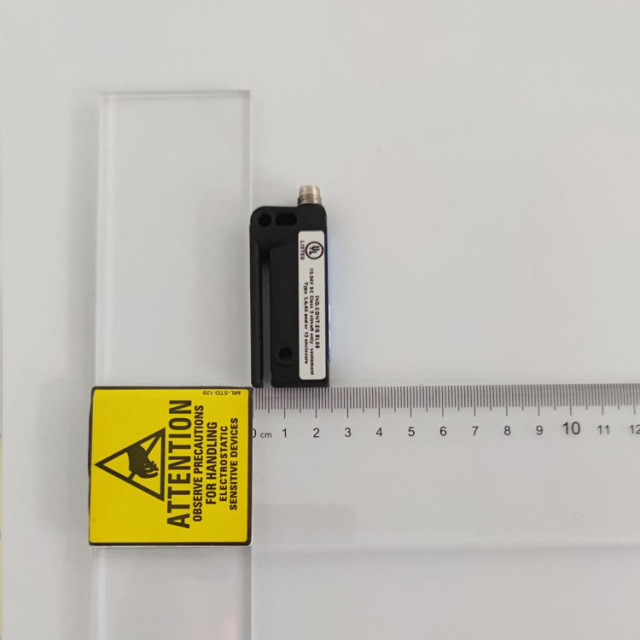

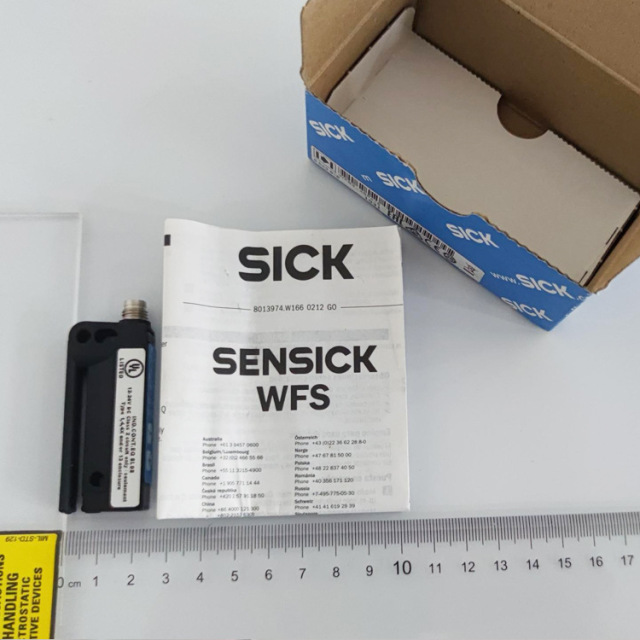

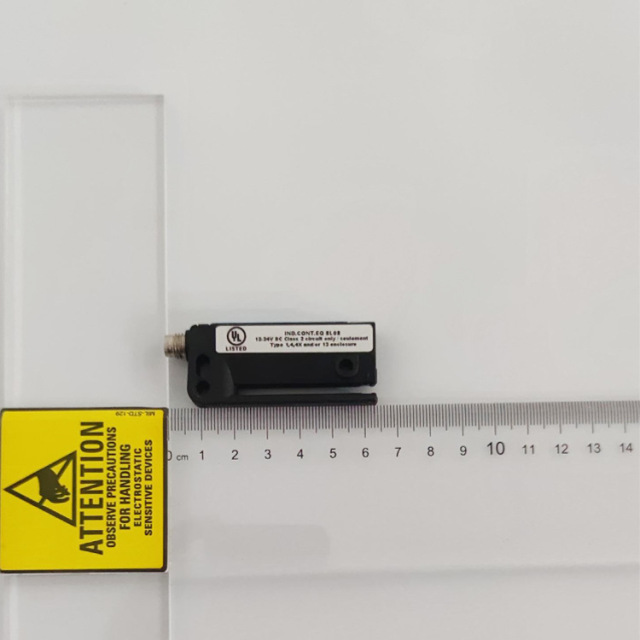

Germany SICK Fork sensor WFS3-40P415 Product Details:
Weight: 46.000 Grams
Net Weight: 46.0 Grams
Volume: 309.0 Cubic Centimetres (cm³)
Dimensions: 6.000*5.000*10.300
Fork sensor
SICK slot sensors integrate the transmitter and receiver in one housing and are therefore quickly calibrated. Due to the high detection accuracy and highly focused light beam, the sensor can also detect very weak light attenuation. This slot sensor has the advantages of a wide variety of slot sizes, simple installation, and high immunity to ambient light.
UFS slot sensors - slim, smart, intuitive to operate - the universal solution for label recognition
Your benefits
lSlim housing, saving installation space
l Installed on the stripping edge, the tape flutter is minimal, achieving high process accuracy
High process reliability due to ultrasonic technology, which avoids recognition errors caused by gloss or ambient light
Reduced waste, due to the ability to detect very small distances (from 1 mm), suitable for more labels on carrier materials
l Direct feedback of teaching quality or operation through bar graph for fast and easy debugging
l Teaching and adjustment can be performed via IO-Link during the process, reducing downtime
Fork Sensor WFE - Excellent all-rounder
Your benefits
l Rugged ABS housing with carbon steel frame, housing protection grade is IP67
l Transmitter and receiver are pre-adjusted in the same housing, so installation is quick and easy
l Various slot widths to suit different application requirements
l Intuitive sensitivity adjustment, push-pull output and light/dark switching, practical and flexible
High switching frequency and high resolution ensure reliable detection even at high speeds
Fork sensor WF - High-speed application experts
Your benefits
Reliable recognition even of fast objects thanks to short response times and high resolution
lInfrared emission light achieves high ambient light immunity
lEasy configuration via IO-Link, teach-in key or plus/minus buttons
l Many different slot sizes are available, flexible installation
lSturdy aluminum housing, suitable for harsh industrial environments
l Via IO-Link or external teach-in function, the switching threshold can be adjusted during operation, thus increasing process reliability
lEasy access to data from a programmable logic controller via IO-Link
Fork sensor UF - The smart choice for transparent label identification
Your benefits
Very flexible in use: UF sensors reliably detect transparent, opaque and printed labels
Even at very fast transmission speeds, it can still accurately monitor with short response time
l With teaching function, debugging is simple and fast
lSturdy aluminum housing, suitable for harsh industrial environments
lExcellent process control stability: Ultrasonic technology prevents false switching caused by extraneous light or shiny surfaces
Fork Sensor WFM - Plug and Play fork sensor – just connect and go
Your benefits
l The set parameters ensure high operational safety and simple commissioning
lWFM uses visible red light for easy alignment
360-degree visible reception indicator light enables stable process control
l Different slot sizes are available to increase installation flexibility
lSturdy aluminum housing, suitable for harsh industrial environments
Fork Sensor WFL - Ideal sensor for identifying small parts and positioning them correctly
Your benefits
High-precision laser beam ensures stable measurement accuracy throughout the entire measuring range and can reliably detect tiny objects
l Use visible laser beam to achieve easy alignment and fast calibration
l High process reliability: simple and reliable setting via teach-in button
l Different slot sizes are available to improve installation flexibility
lSturdy aluminum housing, suitable for harsh industrial environments
l Via IO-Link or external teach-in function, the switching threshold can be adjusted during operation, thus increasing process reliability
lEasy access to data from a programmable logic controller via IO-Link
Slot Sensor WFS - Accurate detection for ideal label recognition
Your benefits
l Flexible and simple installation on the peeling edge of the label peeling machine to achieve high process accuracy
l Small housing, easy to assemble even in limited space
lEasy to set up, simple and quick to debug
Even at very high transmission speeds, it can still achieve accurate detection with short response time
l Via IO-Link or external teach-in function, the switching threshold can be adjusted during operation, thus increasing process reliability
lEasy access to data from a programmable logic controller via IO-Link
Accurate detection for ideal label recognition
The WFS slot sensor has a narrow shape and was developed specifically for the requirements of labeling processes. Due to its design, the sensor can be mounted directly on the peeling edge of the label dispenser. No more searching for label gaps – the sensor switching threshold can be taught during the strip run. Thanks to this clever operating concept, the sensor can be set quickly, simply and reliably for different labels. Short response times ensure ideal repeat accuracy.
Overview
lSlim slotted housing
l Simple and accurate setting of the switching thresholds via IO-Link, teach-in key or plus/minus buttons
lCan set light on/dark on switch
lShort response time: 50 μs
lPNP or NPN switch output
lPlastic housing protection grade IP 65
Smart Sensor with integrated IO-Link interface
Similar models:
WFS3-40P115 WFS3-40P41C WFS3-40N115 WFS3-40N41C WFS3-40N415 WFS3-40B41CA00 WFS3-40B41CA70 WFS3-40B41CA71 UFS3-37N117 UFS3-37P117 UFS3-37B417 UFS3-37B117 UFS3-37P517 UFS3-37B517 UFS3-37N417 UFS3-37N517 UFS3-37P417 WFE-030040B121 WFE-030040B137 WFE-030040B337 WFE-030040B321 WFE-180120B337 WFE-080060B337 WFE-120120B337 WFE-050060B337 WF2-40B410 WF15-40B410 WF80-40B416 WF15-95B416 WF30-95B416 WF120-60B416 WF50-60B410 WF80-60B410 WF80-40B410 WF120-40B410 WF30-40B410 WF15-40B416 WF120-95B410 WF15-95B410 WF5-40B410 WF2-95B410 WF5-60B410 WF15-60B410 WF50-60B416 WF225-B4150 WF120-40B416 WF5T-B4210 WF3T-B4210 WF50-40B410 WF50-95B410 WF80-95B410 WF30-60B410 WF2-60B416 WF2-95B416 WF5-40B416 WF5-95B416 WF120-60B410 WF2-40B416 WF30-95B41CA00 WF50-40B41CA00 WF30-40B41CA71 WF30-60B41CA00 WF80-40B41CA00 WF80-60B41CA00 WF50-60B41CA00 WF50-95B41CA00 WF80-95B41CA00 WF120-40B41CA00 WF120-60B41CA00 WF120-95B41CA00 WF2-40B41CA70 WF2-40B41CA71 WF2-40B41CA00 WF2-95B41CA00 WF5-40B41CA00 WF2-60B41CA00 WF15-40B41CA00 WF15-60B41CA00 WF5-60B41CA00 WF5-95B41CA00 WF30-40B41CA70 WF15-95B41CA00 WF30-40B41CA00 WF50-60B41CA71 WF50-60B41CA70 WF80-60B410S06 WF2-60B410 WF5-95B410 WF50-40B416 WF50-95B416 WF80-95B416 WF80-60B416 WF30-40B416 WF30-60B416 WF2-B4210 WF120-95B416 WF30-95B410 WF5-60B416 WF15-60B416 WF50-40B41CA71 WF120-40B41CA71 WF2-40B110 WF80-60B41CB01
