Messensor distribution in Germany S ICK slot sensor UF series and other full range of products,
We guarantee brand new, original and authentic products, and can provide product model pictures, parameters, technical data and official information.

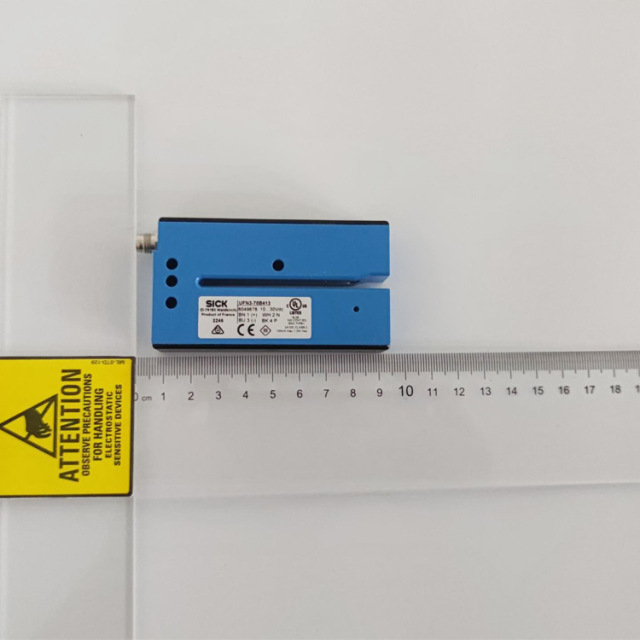

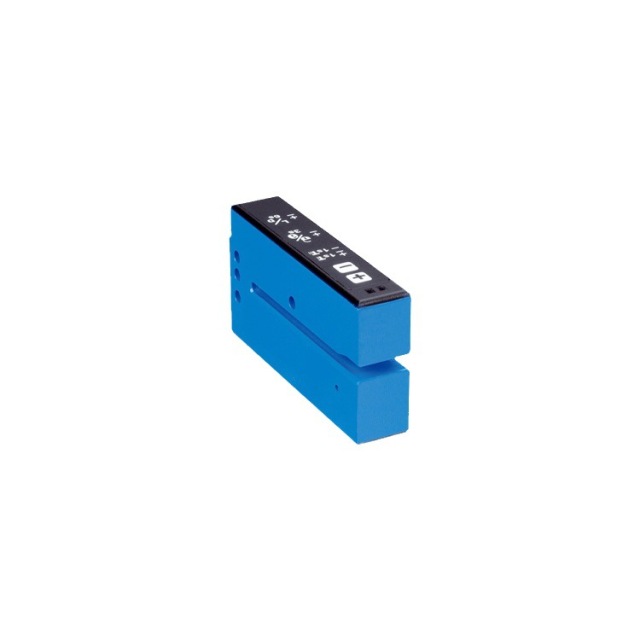

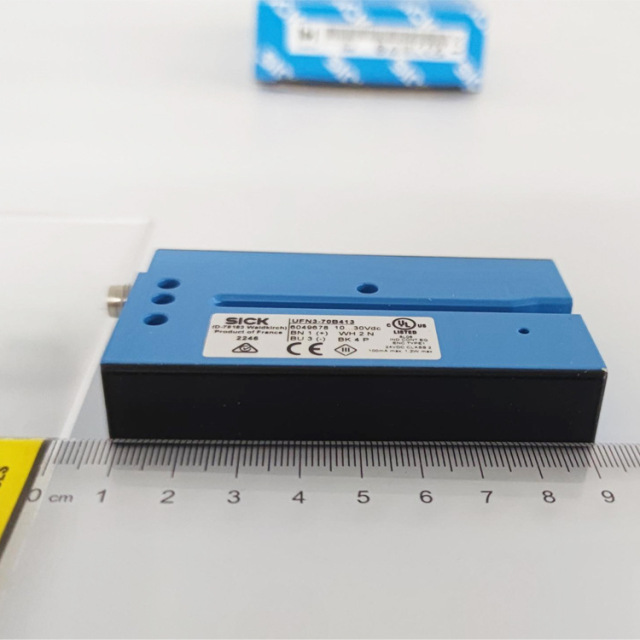

Germany SICK Fork sensor UFN3-70B413 Product Details:
weight : 0.162 Kilograms
net weight : 0.162 Kilograms
volume : 362.25 Cubic Centimetres (cm³)
size : 9.000*3.500*11.500

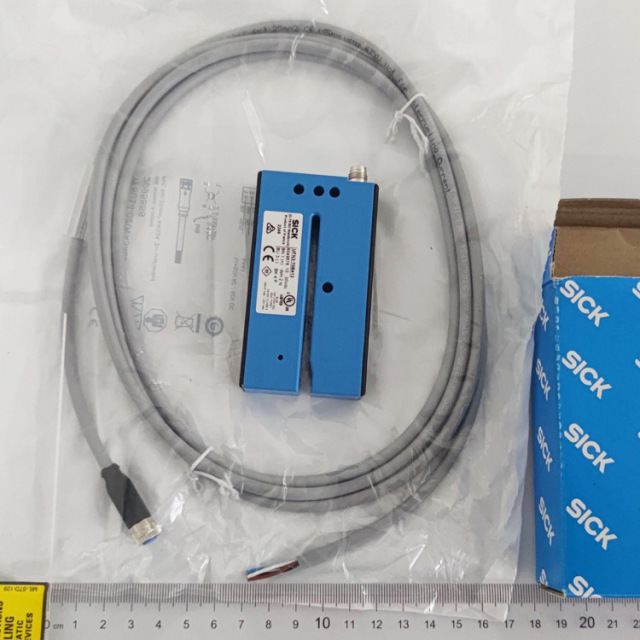

Accessory plugs and cables: YF8U14-020UA3XLEAX Order Number : 2094791
l Connection Head A: Female connector, M8, 4-pin, straight, A-coded
l Connection B head: bare wire end
l Signal Type : Sensor/actuator cables
l cable : 2 m, 4 cores, halogen-free PUR
l license : UL
l describe : Sensor/actuator cable, unshielded
l Application Areas : Oil/lubricant area, Conveyor belt operation, Robotics
Fork sensor
SICK slot sensors integrate the transmitter and receiver in one housing and are therefore quickly calibrated. Due to high detection accuracy and highly focused light beams, the sensor can also detect very weak light attenuation. This slot sensor has the advantages of a wide variety of slot sizes, simple installation, and high immunity to ambient light.
Slot Sensors UFS - slim, smart, intuitive - the universal solution for label identification
Your benefits
lSlim housing, saving installation space
l Installed on the stripping edge, the tape flutter is minimal, achieving high process accuracy
High process reliability due to ultrasonic technology, which avoids recognition errors caused by gloss or ambient light
l Reduced waste due to the ability to detect very small distances ( 1 mm), for more labels on carrier materials
l Direct feedback of teaching quality or operation through bar graph for fast and easy debugging
l In the process, you can IO-Link for teaching and adjustment, reducing downtime
Slot Sensors WFE - Excellent all-rounder
Your benefits
l Rugged ABS housing with carbon steel frame, enclosure protection grade IP67
l Transmitter and receiver are pre-adjusted in the same housing, so installation is quick and easy
l Various slot widths to suit different application requirements
l Intuitive sensitivity adjustment, push-pull output and bright-through / Dark on/off switching, practical and flexible
High switching frequency and high resolution ensure reliable detection even at high speeds
Slot Sensors WF - High-speed application experts
Your benefits
Reliable recognition even of fast objects thanks to short response times and high resolution
lInfrared emission light achieves high ambient light immunity
l pass Simple configuration via IO-Link, teach-in key or plus/minus buttons
l Many different slot sizes are available, flexible installation
lSturdy aluminum housing, suitable for harsh industrial environments
l pass IO-Link or external teach function to adjust the switching thresholds during operation, thus increasing process reliability
l pass IO-Link provides easy access to data from programmable logic controllers
Slot Sensors WFM - Plug and Play fork sensor – just connect and go
Your benefits
l The set parameters ensure high operational safety and simple commissioning
lWFM uses visible red light for easy alignment
360-degree visible reception indicator light enables stable process control
l Different slot sizes are available to improve installation flexibility
lSturdy aluminum housing, suitable for harsh industrial environments
Slot Sensors WFL - Ideal sensor for identifying small parts and positioning them correctly
Your benefits
High-precision laser beam ensures stable measurement accuracy throughout the entire measuring range and can reliably detect tiny objects
l Use visible laser beam to achieve easy alignment and fast calibration
l High process reliability: simple and reliable setting via teach-in button
l Different slot sizes are available to improve installation flexibility
lSturdy aluminum housing, suitable for harsh industrial environments
l pass IO-Link or external teach function to adjust the switching thresholds during operation, thus increasing process reliability
l pass IO-Link provides easy access to data from programmable logic controllers
Slot Sensors WFS - Accurate detection for ideal label recognition
Your benefits
l Flexible and simple installation on the peeling edge of the label peeling machine to achieve high process accuracy
l Small housing, easy to assemble even in limited space
lEasy to set up, simple and quick to debug
Even at very high transmission speeds, it can still achieve accurate detection with short response time
l pass IO-Link or external teach function to adjust the switching thresholds during operation, thus increasing process reliability
l pass IO-Link provides easy access to data from programmable logic controllers
Slot Sensors UF - The smart choice for transparent label identification
Your benefits
l Very flexible to use: UF sensors reliably detect transparent, opaque and printed labels
Even at very fast transmission speeds, it can still accurately monitor with short response time
l With teaching function, debugging is simple and fast
lSturdy aluminum housing, suitable for harsh industrial environments
lExcellent process control stability: Ultrasonic technology prevents false switching caused by extraneous light or shiny surfaces
The smart choice for transparent label identification
Regardless of the printing method, transparency and surface roughness of the label and carrier material, The UF ultrasonic fork sensor can detect these. It detects transparent labels on transparent carrier materials and different prints on labels and distinguishes whether the material is one- or two-layer. The UF ultrasonic fork sensor can detect labels on the tape with a spacing of only 2 mm. The high positioning accuracy and short response time make the fork sensor very versatile. The compact aluminum housing also makes it suitable for confined spaces. The ultrasonic principle of the UF sensor is based on the signal attenuation caused by different material thicknesses.
Overview
lIdentify transparent, opaque or printed labels
The metallic luster will not affect its work
l Response time: 250 µs
l Simple and accurate setting of the switching threshold via teach-in key or plus and minus buttons
l Aluminum housing protection level IP 65
Similar models:
UFN3-70B413 UFN3-70B417 UFN3-70N415 UFN3-70P415 UFN3-70N417 UFN3-70P417 UFN3-70B113 WFM80-60N321 WFM50-60P321 WFM30-40P311 WFM30-40P321 WFM50-60N311 WFM50-60N321 WFM80-60P311 WFM30-40N321 WFM30-40P121 WFM30-40N311 WFM180-120P311 WFM120-120P321 WFM120-120P311 WFM180-120P321 WFM80-60P321 WFM50-60P311 WFM180-120N321 WFM180-120N311 WFM80-60N311 WFM120-120N321 WFM120-120N311 WFM30-40P111 WFM36-28P521S03 WFM30-40N121 WFM30-40N111S02 WFL5-40B416 WFL80-40B416 WFL30-60B416 WFL30-40B416 WFL50-40B416 WFL30-95B416 WFL15-40B416 WFL15-60B416 WFL2-40B416 WFL120-40B416 WFL80-95B416 WFL120-60B416 WFL50-95B416 WFL50-60B416 WFL80-60B416 WFL2-60B41CA00 WFL2-95B41CA00 WFL2-40B41CA00 WFL5-95B41CA00 WFL15-40B41CA00 WFL5-40B41CA00 WFL5-60B41CA00 WFL15-60B41CA00 WFL15-95B41CA00 WFL30-95B41CA00 WFL50-40B41CA00 WFL30-40B41CA00 WFL30-60B41CA00 WFL50-60B41CA00 WFL50-95B41CA00 WFL50-40B41CA70 WFL50-40B41CA71 WFL80-60B41CA00 WFL80-95B41CA00 WFL120-95B41CA00 WFL80-40B41CA00 WFL120-40B41CA00 WFL120-60B41CA00 WFL5-60B416 WFL5-95B416 WFL15-95B416 WFL2-60B416 WFL2-95B416 WFL120-95B416
