meetsensor distributes a full range of products including the German SICK laser distance sensor Dx50-2 series, ensuring new, original and authentic products, and can provide product model pictures, parameters, technical data and official information.

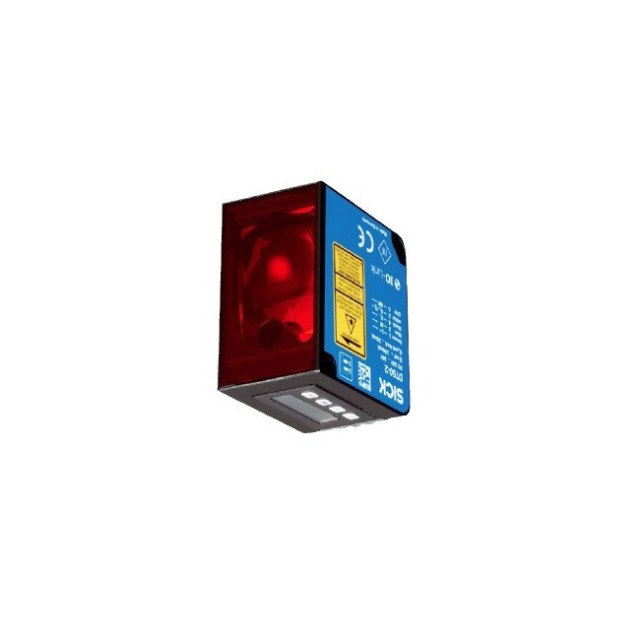

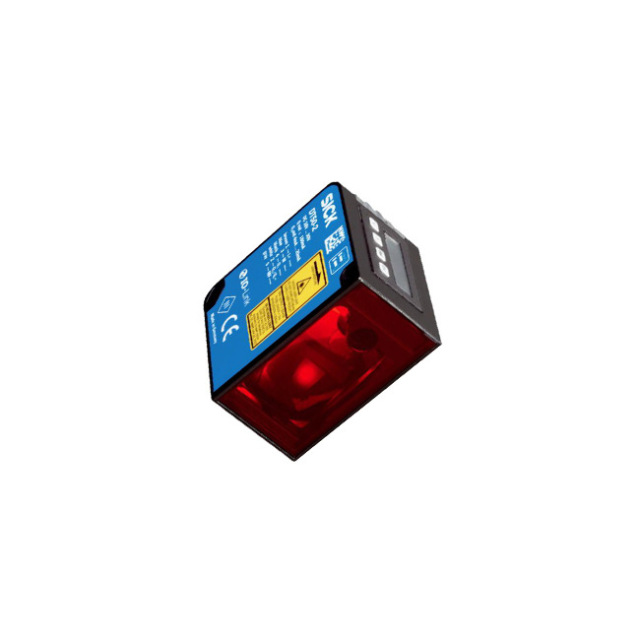

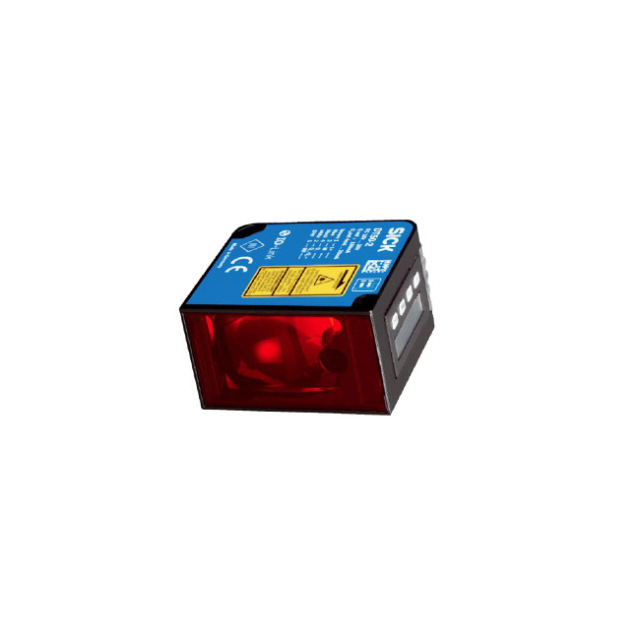

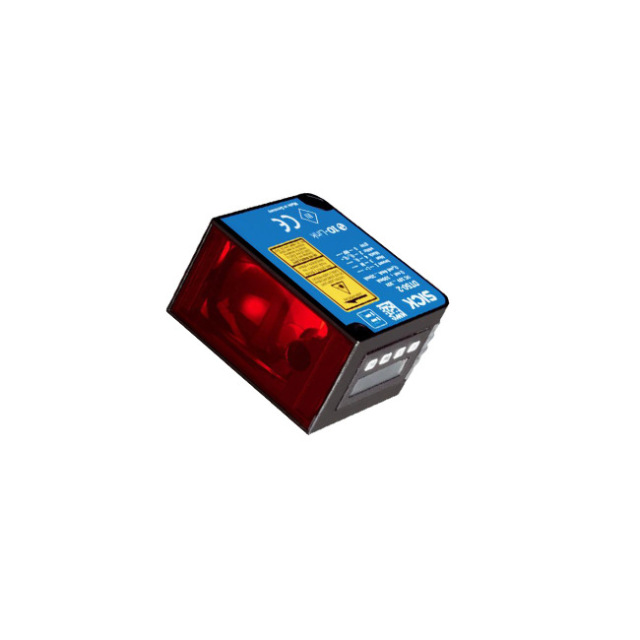

Germany SICK Laser distance sensor Dx50-2 series DT50-2B215252 Product Details:
Laser distance sensor DX50-2 A new era of distance measurement
The ideal combination of measuring performance and size: With the new generation of the Dx50-2, SICK is setting new standards for distance sensors. Based on the patented and further improved HDDM™ light runtime technology, the new product series offers accurate and reliable measurements: up to 10 m in black and up to 30 m in white. The Dx50-2 is equipped with an intuitive display – saving time during installation and commissioning. The high output rate of the sensor provides up to 3,000 distance values per second for greater throughput and process quality. The Dx50-2 is robust, resistant to temperature changes and can also be used in harsh environments. Speed, scanning range and repeatability can be flexibly set, so that the Dx50-2 can be ideally matched to all applications.
Benefits
The combination of large measuring range and compact size enables it to be used in a variety of different situations
Higher measurement frequency enables greater throughput
Valid and reliable measurement, independent of object color, improves uptime and process quality
l Reliable use even in harsh environments due to its durability, wide temperature range and ambient light immunity
l Integrated shape comparison function enables simple inspection and classification of objects
l Save time by fast and simple commissioning thanks to the intuitive operating structure of the display and simple teach-in options,
l Full process control via IO-Link – from commissioning to maintenance
Three switching modes for easy handling of demanding applications
Features
l For small structure sizes, the measuring range is up to 10 m for black and up to 30 m for white
l Output rate up to 3,000 / s
l Repeatability: 0.5 mm to 5 mm
l Reliable, patented HDDM optical runtime technology
l With a reliable metal housing, it can withstand temperature changes from –40 °C to +65 °C
l Shape comparison function integrated in the sensor
l IO-Link, analog and digital output
l Intuitive operation, display with Easy-Teach option
l Enclosure protection grade IP 65 and IP 67
Advantage
Dx50-2 – Endless Possibilities – Finally Available
By combining optimized measuring technology with modern microcontroller technology Dx50, SICK offers a medium-range distance sensor that meets existing market requirements. The Dx50-2 solves tasks that were previously impossible.
Long sensing distances and high speeds in a compact package: the 2nd generation of mid-range distance sensors Dx50.
HDDM and HDDM+ Technology
SICK's unique HDDM technology is a milestone in the development of distance sensors. The sensor calculates the distance between the object being measured and the return direction based on the runtime of multiple laser pulses. It enables stable and uniform, seamless and complete scanning as well as reliable measurement results. All this is possible even in dirty, dusty and humid conditions.
Higher speed
Measuring and output frequencies of up to three kilohertz enable reliable integration of the Dx50-2 even in very fast process steps.
Wider measuring range
Driven by the growing e-commerce, more logistics hubs will be established worldwide and port facilities will be expanded or newly built. In response to these changes, the measurement range of the Dx50-2 has been expanded again. This sensor can be combined with newly developed optical devices to achieve correct positioning of workshops and port cranes, for example, and is suitable for position and distance measurement in traditional logistics.
Excellent measurement accuracy
Increasing quality requirements and faster workflows in the automotive industry are making distance sensors realize their full potential. The Dx50-2 is designed to consistently meet the requirements in terms of precision and throughput.
Developed to increase productivity, the Dx50-2 is always the smart choice when better measurement performance is needed, for example.
The Dx50-2 distance sensor can be used in a wide range of demanding stationary and mobile applications:
l Positioning of rail vehicles, gripper arms and crane systems
l Collision avoidance in port facilities and intralogistics
l Quality control and process monitoring in the automotive industry
Robust and durable: Slip-free and wear-free measurement of lifting heights
Indispensable: Efficient quality management thanks to small spot geometry and high measuring accuracy
Unrivalled: Determination of position and orientation to the millimetre level, regardless of the environment
Its powerful capabilities can be clearly felt in complex mission settings of mid-range distance sensors.
As the co-creator of IO-Link, SICK has the most extensive IO-Link portfolio on the market. Smart Sensors with IO-Link generate and receive data and information that go far beyond conventional switching signals or measured process parameters. As a result, sensors enable significantly higher efficiency, greater flexibility and better safe planning of predictive maintenance for machines and plants. You can take advantage of SICK's extensive experience with a wide range of sensor principles, now also in combination with the Sensor Integration Gateways SIG100 and SIG200.
use IO-Link technology enables simple switching outputs for the communication interface. This enables fast batch changes as well as simple commissioning, maintenance and diagnostics.
SICK comprehensive service
SICK's services increase the productivity of machines and systems, improve personal safety worldwide, lay the foundation for a sustainable economy and protect investments. In addition to practical consulting services, SICK also provides support in concept and commissioning as well as on-site during operation.
The scope of services mainly includes maintenance and inspection, performance checks as well as upgrades and retrofits. Modular or individual service contracts increase the service life and availability of the equipment. Faults or exceeded limit values can be detected at any time by sensors and systems.
l Consulting and Design – Application-specific consulting for the product, product integration, and the application itself.
l Commissioning and maintenance – application-optimized and sustainable – thanks to professional commissioning and maintenance by trained SICK service technicians.
l Service contracts – Extended warranty, SICK Remote Service, 24-hour help desk, maintenance, availability guarantee and other modules can be individually combined as required.
Laser distance sensor
Distance measurement is one of the most common and important tasks in industrial production. However, the application scenarios here are complex and diverse, and no single sensor is suitable for all tasks. SICK can provide effective products for distance measurement to cope with a wide variety of measurement tasks.
SICK It is one of the world's leading manufacturers of industrial sensor application solutions. In 1946, the company was founded in Waldkirch by Dr. Erwin SICK, an honorary engineer. Its headquarters is located in the Breisgau region, close to Freiburg. SICK is one of the technology and market leaders in the field of industrial sensors, with more than 50 subsidiaries, branches and representative offices. SICK has nearly 12,000 employees worldwide, and in the 2022 fiscal year, the group's turnover was approximately 2.2 billion euros.
From factory automation to logistics automation to process automation - SICK drives the industry forward with its sensor solutions. As a technology and market leader, SICK provides the ideal foundation with sensor intelligence and application solutions to achieve safe and efficient process control, prevent personal accidents and avoid environmental pollution.
S ICK in China
Guangzhou SICK Sensor Co., Ltd. (abbreviated as SICK China) was established in 1994 and is a wholly-owned subsidiary and one of SICK's important branches in Asia. After years of development and accumulation, SICK China has become an influential supplier of intelligent sensor solutions.
SICK China is headquartered in Zhujiang New Town, CBD of Guangzhou, and has branches in Shanghai, Beijing, Qingdao, Shenzhen, Shenyang, Tianjin, Chengdu, Suzhou and other places. It is equipped with local customer service center, logistics center, technical service center (including intelligent application center), visual laboratory and other core support centers, forming an institutional system and business network covering major regions across the country, providing customers with products, systems, services and comprehensive solutions such as testing, measurement, safety protection, automatic identification, positioning, integrated control, testing control, technical services, traceability system, robot navigation system, etc. As of 2021, the number of employees exceeds 400. SICK China includes the management and operation of SICK Hong Kong.
Similar models:
DT35S-B15251 Order No.: 1122104 DT35-B15251 Order No.: 1057652 DT35-B15551S04 Order No.: 1068098 DT35-B15851 Order No.: 1057653 DR35-B15522 Order No.: 1057659 DL35-B15552 Order No.: 1057657 DL35-B15852 Order No.: 1057658 DS35-B15521 Order No.: 1057654 DS35-B15221 Order No.: 1057655 DS35-B15821 Order No.: 1057656 DR35-B15822 Order No.: 1057660 DT35S-B15551 Order No.: 1122103
