meetsensor distributes the full range of products including the German SICK laser distance sensor Dx50 series, ensuring new and original products, and can provide product model pictures, parameters, technical data and official information

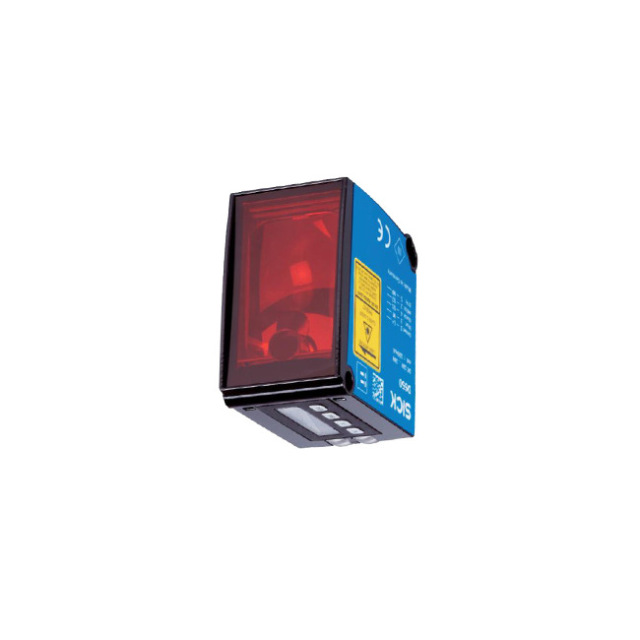

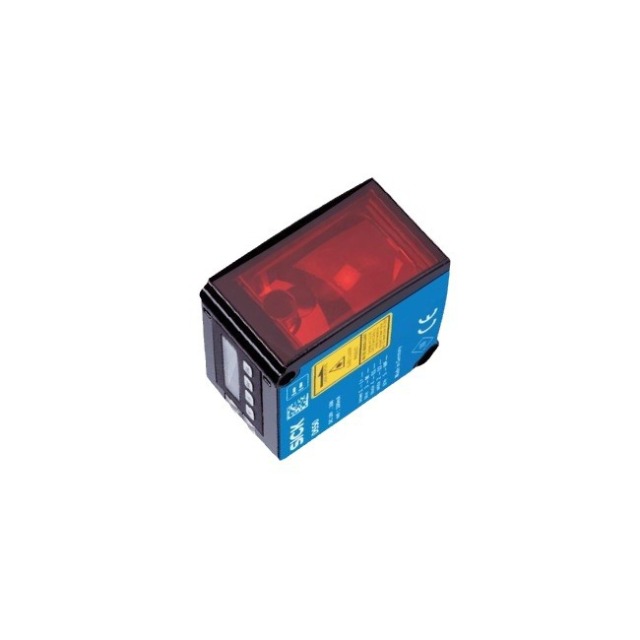

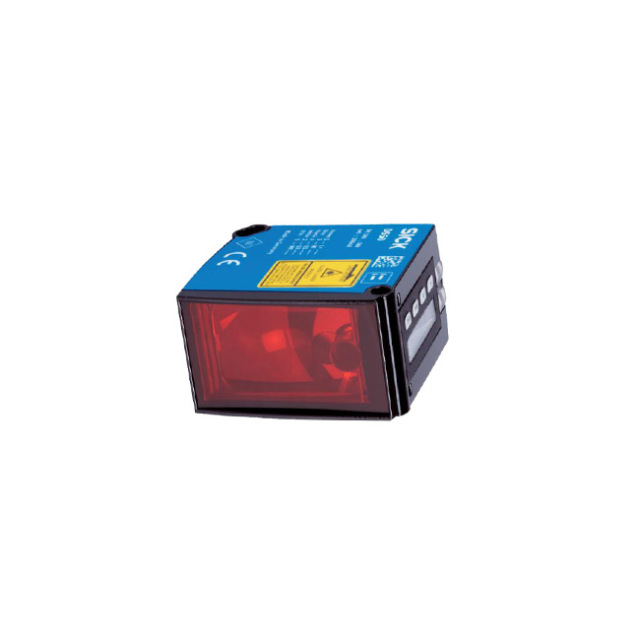

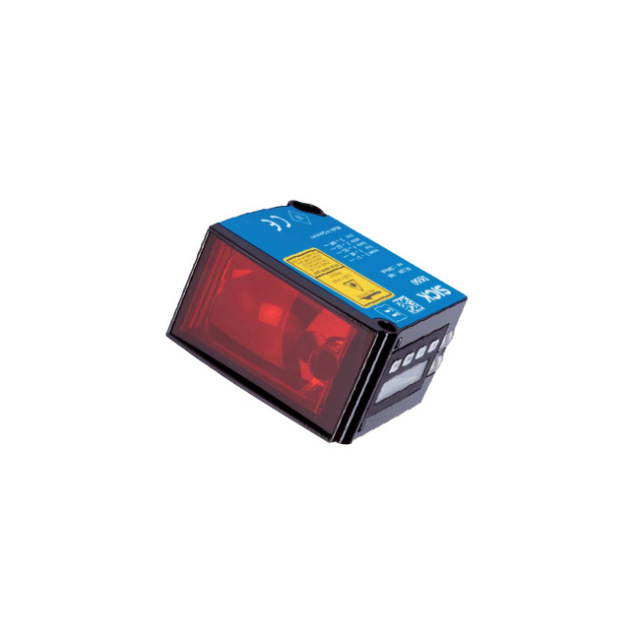

Germany SICK Laser distance sensor Dx50 series DL50-P1123 Product Details:
Laser distance sensor DX50 --Measure distance – Reliable, accurate and diverse
The distance sensors of the Dx50 product series offer measuring ranges of 10 m, 20 m or even 50 m for reflectors, depending on performance and laser class. With their large measuring range, the sensors are extremely versatile, with signal output via switching, analog or serial, and can be easily integrated into all production environments. Commissioning is also made easier with their intuitive and coherent operating concept. The Dx50 products excel in operation thanks to their high reliability, immunity to ambient light and the accuracy of the HDDM technology. With their excellent price/performance ratio, the products of the Dx50 product series excel in all aspects.
Benefits
The combination of different interfaces and measuring ranges of up to 10, 20 or 50 m enables simple and fast integration into all production environments
Highly accurate and reliable measurements help improve process quality and stability
High measuring or switching frequencies enable fast material flow
Diverse Dx50 portfolio enables quick adaptation to changing requirements
Simple and fast operation via the display reduces commissioning efforts to a minimum
Simple use outdoors or in refrigerated areas thanks to the temperature range of –30 °C to +65 °C
Increased machine availability through ambient light immunity up to 40 klx
Features
Ideal reliability, ambient light immunity and price performance thanks to HDDM technology
Measuring range: 10 m or 20 m (for objects) or 50 m (for reflectors)
Different performance levels, depending on product and laser class
Different interfaces: digital, analog or serial
Intuitive display with consistent working concept
Rugged zinc die-cast housing
Wide operating temperature range: –30 °C to +65 °C
Advantage
With the help of HDDM technology, the Dx50 product series sets a new standard in the industry
With the Dx50 product series, SICK pioneered the design of distance sensors that stand out from the crowd thanks to their slender design and impressive measuring performance. The large Dx50 optical unit enables distance measurements up to 50 m triggering sensing distance both indoors and outdoors. The sensor's wide range of interface combinations enables seamless integration into customer applications. The intuitive user interface makes commissioning very simple. In addition, the Dx50 offers an excellent price-performance ratio. Further product highlights
Not sensitive to external light
The Dx50 distance sensor is insensitive to external light, ensuring trouble-free operation and accurate distance determination in both indoor and outdoor ranges.
HDDM Technology
SICK's unique HDDM technology is a milestone in the development of distance sensors. The sensor calculates the distance between the object being measured and the return direction based on the runtime of multiple laser pulses. It enables stable and uniform, seamless and complete scanning as well as reliable measurement results. All this is possible even in dirty, dusty and humid conditions.
Available in various models
SICK's Dx50 distance sensors can be easily integrated into new and existing machines and systems. Whether inductive or reflector version, laser class 1 or 2, analog, digital or serial interface: the combination possibilities are almost endless. If you also need customized sensor parameter settings, SICK will be happy to implement them for you.
Wide measuring range
The Dx50 has a trigger sensing distance of up to 50 m, which allows it to be used in a wide range of applications.
Wide ambient temperature range
With an ambient temperature range of –30 °C to 140 °C, the sensor can be used worldwide without restriction - indoors and outdoors, even in refrigerated applications.
The compact sensor has a wide ambient temperature range. The Dx50 is not sensitive to external light and, thanks to its wide range of models, is suitable for almost every application.
Vertical positioning of cranes in warehouse
For smaller components, rolling mills use vertical cranes in the post-production area. They are used to move the parts to the automated high-bay warehouse. To ensure that the crane moves to the correct shelf position, a mid-range distance sensor helps the starter to position itself. The compact DL50 Hi offers excellent power values up to 50 m. The HDDM technology used provides the basis for its reliability and excellent repeatability. A red laser beam helps with exact alignment. The robust metal housing makes it particularly suitable for the harsh environmental conditions in the rolling mill warehouse.
Vertical Positioning Electric Suspension Conveyor
Electric overhead conveyors deliver car bodies, engines and other hard-to-transport components to their designated work locations. The DL50 Hi is perfectly suited to this important task with its excellent repeatability and ensures accurate access to height positions.
Diameter monitoring during coil winding
At the end of the strip manufacturing process, high-quality steel strip is wound into coils. This process requires accurate diameter monitoring in order to record the correct length at all times. The DT50 distance sensor supports this important process step with millimeter accuracy.
SICK comprehensive service
SICK's services increase the productivity of machines and systems, improve personal safety worldwide, lay the foundation for a sustainable economy and protect investments. In addition to practical consulting services, SICK also provides support in concept and commissioning as well as on-site during operation.
The scope of services mainly includes maintenance and inspection, performance checks as well as upgrades and retrofits. Modular or individual service contracts increase the service life and availability of the equipment. Faults or exceeded limit values can be detected at any time by sensors and systems.
Consulting and Design
Application-specific consulting for products, product integration, and the applications themselves.
Debugging and maintenance
Application-optimized and sustainable – thanks to professional commissioning and maintenance by trained SICK service technicians.
service contract
Extended warranty, SICK Remote Service, 24-hour helpdesk, maintenance, availability guarantee and other modules can be individually combined as required.
Laser distance sensor
Distance measurement is one of the most common and important tasks in industrial production. However, the application scenarios here are complex and diverse, and no single sensor is suitable for all tasks. SICK can provide effective products for distance measurement to cope with a wide variety of measurement tasks.
SICK is one of the world's leading manufacturers of industrial sensor application solutions. Founded in 1946 by Dr. Erwin SICK, an honorary engineer, in Waldkirch, SICK is headquartered in the Breisgau region, close to Freiburg. SICK is one of the technology and market leaders in the field of industrial sensors, with more than 50 subsidiaries, branches and representative offices. SICK has nearly 12,000 employees worldwide and achieved a turnover of approximately 2.2 billion euros in the 2022 fiscal year.
From factory automation to logistics automation to process automation - SICK drives the industry forward with its sensor solutions. As a technology and market leader, SICK provides the ideal foundation with sensor intelligence and application solutions to achieve safe and efficient process control, prevent personal accidents and avoid environmental pollution.
