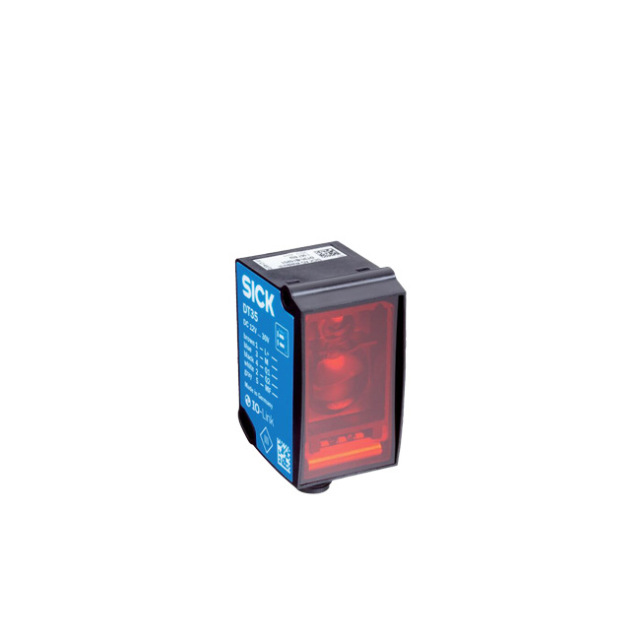

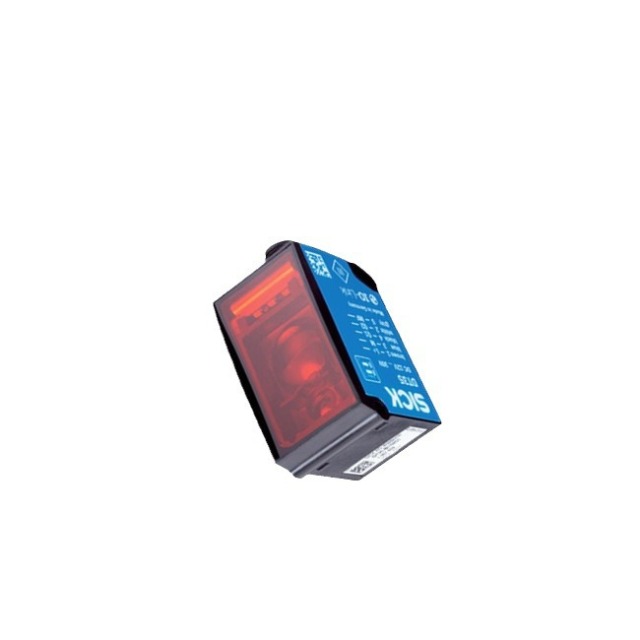

Germany SICK Laser distance sensor DT35-B15551 Product Details:
Laser distance sensor Dx35 shows the correct size when applied – flexible measurement or switchable to 35 m
The Dx35 product family of distance sensors based on HDDM™ technology combines increased reliability, measuring performance, flexibility and an ideal price/performance ratio in a very compact housing. Depending on the application, sub-product families are available for distance measurement to natural objects (DT35 and DS35) or reflective film (DL35 and DR35). The sub-product families also differ in their interfaces. In addition to the IO-Link functionality of all devices, the product family offers sensors with analog and output signal switching devices (DT and DL) or with two output signal switching devices (DS and DR). The last important point when choosing the ideal sensor for the application is the light emitter: infrared or red light emission with laser class 1 or 2.
Benefits
Accurate and reliable measurement increases uptime and improves process quality, regardless of object color
l Small size and safety blind area enable flexible installation in narrow spaces
l Optimized solution thanks to flexible settings of speed, scanning range and repeatability
Flexible interface use: 4 mA to 20 mA, 0 V to 10 V, PNP, NPN or IO-Link – for easy machine integration
A wide range of optical transmitters with easy alignment, superior performance and non-intrusive measurements always provide you with the ideal solution
l Ensures a quick return on investment with high performance and low investment cost
l IO-Link provides full process control from commissioning to service
DT35-S – Certification up to Performance Level B allows for flexible use to protect personnel and assets
Features
l With HDDM technology, high reliability, strong ambient light immunity and excellent cost performance are achieved
l Measuring range: 0.05 m to 12 m (for natural objects), 0.2 m to 35 m (for reflective film)
l Devices with analog and digital outputs or pure switching
l Infrared or red emitting light of laser class 1 or 2
l Repeatability: 0.5 mm to 5 mm
l Small size
IO-Link
DT35-S – certified to ISO 13849 (PL b) and IEC 62998 (PC B)
Advantage
Dx35 – Display true size in the app
The mid-range distance sensor Dx35 is the result of SICK's extensive experience and expertise in the field of distance sensors. It does what was previously unthinkable. The attractive housing concept combined with excellent performance makes the Dx35 the first choice for applications in confined spaces with a scanning range of up to 35 m.
l Flexible - Even in fast production processes, the Dx35 always keeps the overall situation in mind thanks to the individually selectable response times.
l Focus - The Dx35 always makes accurate measurements across the entire color spectrum because it uses HDDM technology.
l Resolute - Some object detections may seem like unsolvable tasks. But that's not a problem for the Dx35, as it can detect and measure deep blacks, bright highlights, and extremely angled objects.
Reliable measurement results even in demanding tasks and harsh environmental conditions
IO-Link
As the co-founder of IO-Link, SICK has the broadest IO-Link portfolio on the market. Smart Sensors with IO-Link generate and receive data and information that go far beyond conventional switching signals or measured process parameters. As a result, sensors enable significantly higher efficiency, greater flexibility and better safe planning of predictive maintenance for machines and plants. You can take advantage of SICK's extensive experience with a wide range of sensor principles, now also in conjunction with the Sensor Integration Gateways SIG100 and SIG200.
Using IO-Link technology, simple switching outputs can be used for the communication interface. This enables fast batch changes as well as simple commissioning, maintenance and diagnostics.
Flexible distance measurement in storage and conveyor technology
The Dx35 can be used in a variety of applications across a wide range of industries. For example, in warehousing and conveyor technology it reliably detects empty bays or checks the filling level.
l Anti-collision in shuttle warehouse
l Empty cabin detection for automatic guided vehicles
l Detection of overlapping wooden boards
Delivering reliable results throughout the entire production process ── Thanks to the robust housing, even in harsh environmental conditions SICK full range of services
SICK's services increase the productivity of machines and systems, improve personal safety worldwide, lay the foundation for a sustainable economy and protect investments. In addition to practical consulting services, SICK also provides support with concepts and commissioning, as well as on-site support during operation.
The scope of services mainly includes maintenance and inspection, performance checks as well as upgrades and retrofits. Modular or individual service contracts increase the service life and availability of the equipment. Faults or exceeded limit values can be detected at any time by sensors and systems.
l Consulting and Design – Application-specific consulting for the product, product integration, and the application itself.
l Commissioning and maintenance – application-optimized and sustainable – thanks to professional commissioning and maintenance by trained SICK service technicians.
l Service contracts – Extended warranty, SICK Remote Service, 24-hour help desk, maintenance, availability guarantee and other modules can be individually combined as required.
SICK It is one of the world's leading manufacturers of industrial sensor application solutions. In 1946, the company was founded in Waldkirch by Dr. Erwin SICK, an honorary engineer. Its headquarters is located in the Breisgau region, close to Freiburg. SICK is one of the technology and market leaders in the field of industrial sensors, with more than 50 subsidiaries, branches and representative offices. SICK has nearly 12,000 employees worldwide, and in the 2022 fiscal year, the group's turnover was approximately 2.2 billion euros.
From factory automation to logistics automation to process automation - SICK drives the industry forward with its sensor solutions. As a technology and market leader, SICK provides the ideal foundation with sensor intelligence and application solutions to achieve safe and efficient process control, prevent personal accidents and avoid environmental pollution.
Similar models:
DT35S-B15251 Order No.: 1122104 DT35-B15251 Order No.: 1057652 DT35-B15551S04 Order No.: 1068098 DT35-B15851 Order No.: 1057653 DR35-B15522 Order No.: 1057659 DL35-B15552 Order No.: 1057657 DL35-B15852 Order No.: 1057658 DS35-B15521 Order No.: 1057654 DS35-B15221 Order No.: 1057655 DS35-B15821 Order No.: 1057656 DR35-B15822 Order No.: 1057660 DT35S-B15551 Order No.: 1122103
