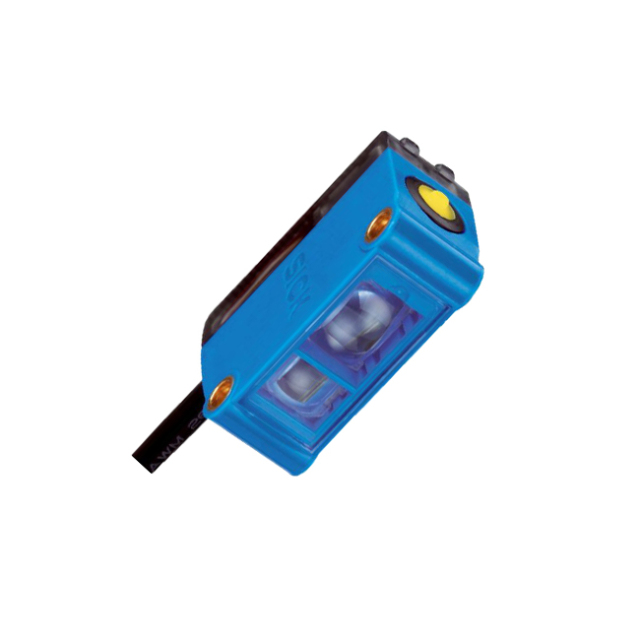

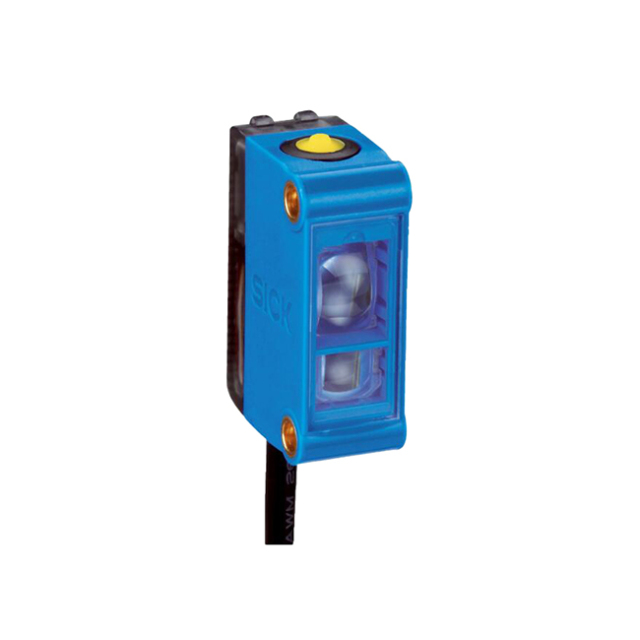

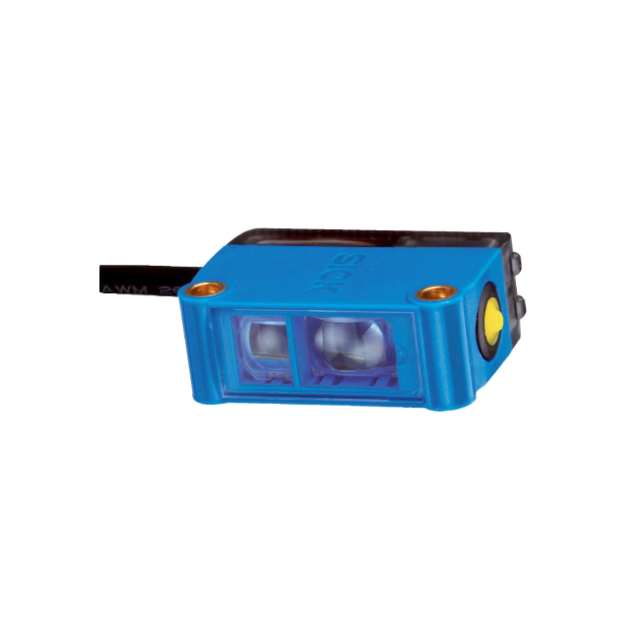

German SICK contrast sensors KTM-WP11172P

Meetsensor distributes a full range of products including contrast sensors from SICK in Germany, guaranteeing new, original and authentic products, and can provide product model pictures, parameters, technical data and official information.

 German SICK contrast sensors KTM-WP11172P Product Details:

 contrast sensors

The contrast sensors detects and compares contrast with high precision by using various light sources, such as white light, laser red light, or RGB light. The detected contrast marks are then reported to the process with minimal signal jitter. By automatically selecting the correct emitter color, it can reliably detect various combinations of colors or grayscale values. The bar graph provides additional convenience for manual adjustments.

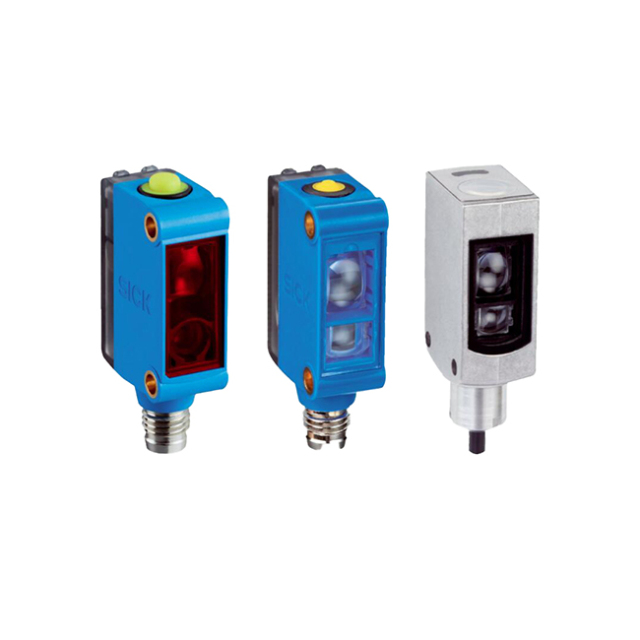

 Contrast sensors—KTM Small, simple, fast

Top performance for versatile, space-saving use in the packaging industry: The KTM contrast sensor from SICK features a high grayscale resolution and is integrated into a small, tried-and-tested housing that is also available in stainless steel. The optimized OES4 ASIC technology and a response time of 35 to 50 µs ensure the reliable and precise detection of contrast marks, even on glossy materials. The various teach-in methods of the sensor offer greater flexibility during commissioning. The integrated IO-Link interface provides access to the parameter settings. For applications with larger distances, SICK offers a laser version of the KTM contrast sensor that can detect contrast marks at distances of up to 250 mm.

 Benefits

• The small housing enables it to be installed even in applications with limited space
• Powerful, fast contrast sensor for high machine throughput
• Various teach-in methods provide flexibility during commissioning
• The good contrast resolution and large dynamic range ensure a high detection performance on glossy materials, thereby expanding the application possibilities
• Long service life thanks to the stainless-steel housing, even under harsh conditions, which results in a high plant availability and low spare part costs
• Improved diagnostics and visualization as well as a quick and easy format change thanks to IO-Link

 Features

• High grayscale resolution
• Various teach-in methods can be used
• High dynamic range for reliable contrast detection on glossy materials
• Switching frequency up to 15 kHz
• Available in white light, RGB light, and laser variants
• IO-Link interface
