meetsensor distributes the full range of products including the German Schmersal electromagnetic safety lock AZM 161 series, ensuring new and original products, and can provide product model pictures, parameters, technical data and official information.

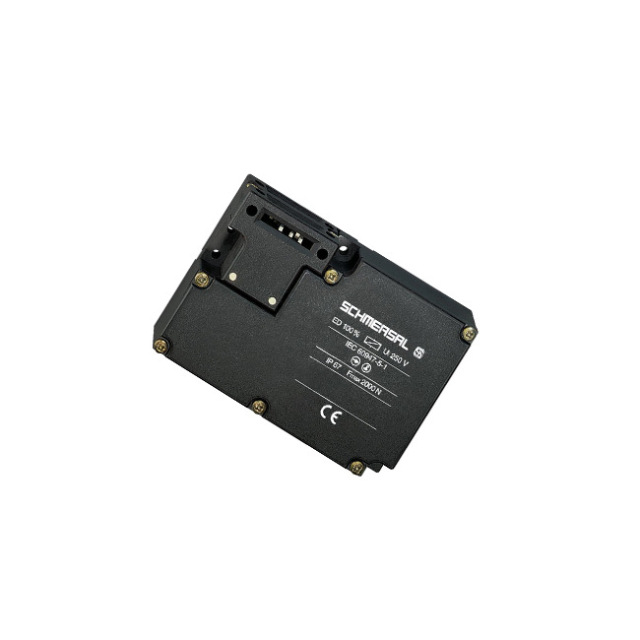

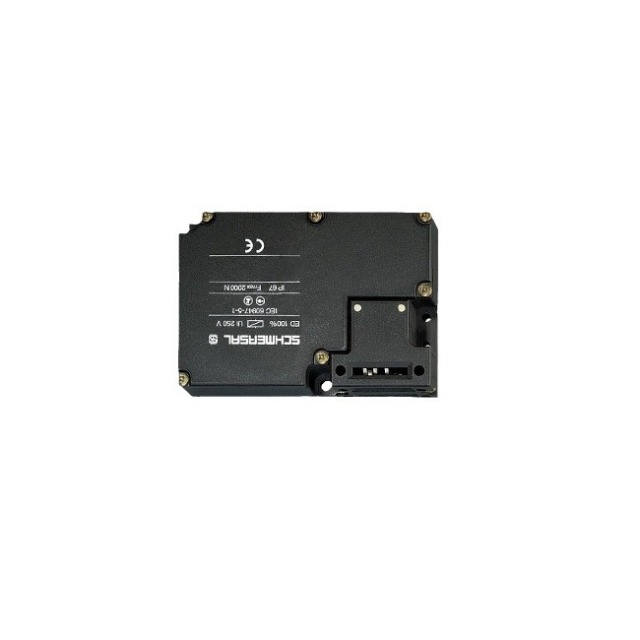

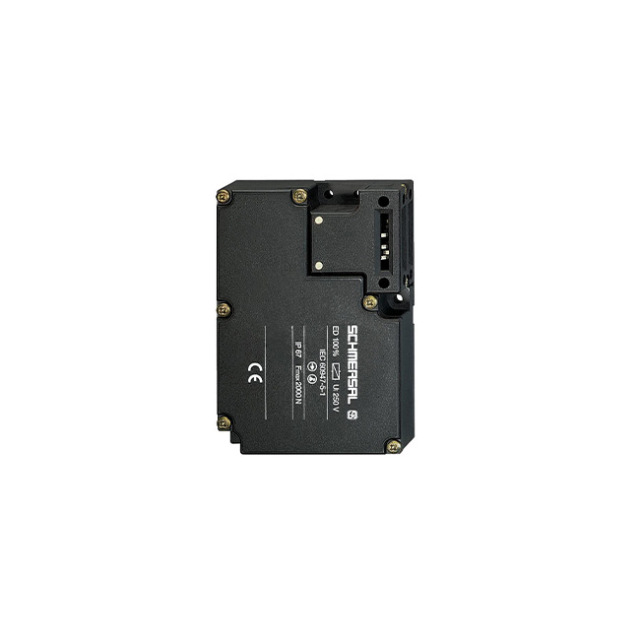

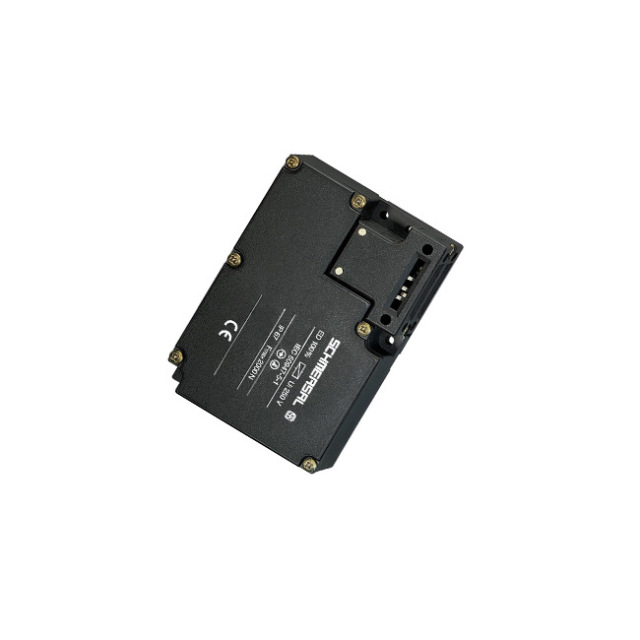

Germany Schmersal Electromagnetic safety lock AZM 161 series AZM161SK-12/12RK-M16-24V Product Details:
ZM161SK-12/12RK-M16-24V AZM161SK-12/12RK-024
AZM161SK-12/12RK-M16-24VProduct features:
l Large wiring room
Manual unlock
l Cable entry 4 M 16 x 1.5
Thermoplastic housing
l Double insulation
l Interlock protection to prevent improper locking
130 mm x 90 mm x 30 mm
6 contacts
Long life
AZM 161 series
Thermoplastic housing
l Double insulation
l Interlock protection to prevent improper locking
130 mm x 90 mm x 30 mm
6 contacts
Long life
Electromagnetic safety lock
application:
The AZM series electromagnetic safety locks are designed to prevent movable safety guards, such as fences, hinges or doors, from being opened when dangerous conditions have not been eliminated (e.g. during operation) in combination with the machine's control components (e.g. automatic fail-safe delay, fail-safe static monitoring, etc.).
These electromagnetic safety locks are also used to open guards to indicate that no unauthorized access is allowed during the production process.
Design and operation:
AZN series electromagnetic safety lock, the switching element with interlocking device is not physically connected to the actuator, but functionally connected or separated when switching. When the safety protection is opened in the unlocked state, the actuator is separated from the base unit. In this process, the normally closed contact is definitely opened and the normally open contact is closed.
Interlocking by fastening bolts / locking bolt. This locking bolt locks the actuator so that it cannot be removed from the interlock. The machine can only be controlled if the actuator is inserted into the interlock and the locking bolt is in the locked position. This is ensured by contact monitoring of the locking bolt.
There are two interlocking methods. The principle of "power to unlock" is that the locking bolt is pushed to the specified position by a spring. When the interlock release coil is energized, the interlock is released and the NC contacts are opened. The protective device can now be opened. For reversing the "power to lock" operating mode.
The electromagnetic safety locks AZM 150, 161, 170, 190 and 415 are designed to prevent incorrect locking. Depending on the type of unit, the actuator can be individually coded.
The electromagnetic safety lock can be installed in any desired installation position. The electromagnetic safety lock has a protection degree of IP 54, IP 65 or IP 67.
KA Schmersal GmbH & Co. KG develops and produces around 18,000 different switchgears and is one of the largest switchgear suppliers today. With industry expertise and quality service, it also offers system solutions for the automation and safety of machines and systems. More than 1,800 employees in more than 20 countries implement future-oriented safety solutions together with customers every day.
Schmersal Group has always been committed to the development and production of safety products, providing a wide range of safety applications and solutions to global customers to ensure the safety of your personnel and equipment.
With more than 25,000 safety product combinations, Schmersal has become a global leader in safety switchgear. Products include: safety switches, electromagnetic safety locks, emergency stop switches, safety sensors, safety mats, safety photoelectric devices, limit switches and proximity switches, safety relay modules and programmable safety control systems.
Schmersal Group has rich industry experience in the field of safety systems. Whether it is high quality demand or special regulations and technical requirements, we can provide you with the best industry solutions. Business areas include: food manufacturing, packaging industry, machine tool machinery, elevator industry, heavy industry and automotive industry, etc.
Safety Technology Service Center tec.nicum can also provide you with a full range of mechanical safety and industry safety technical consulting services. From current situation analysis to planning management until final delivery, we provide you with a full range of safety project services.
Similar models: AZM161SK-12/12RKAT-M16-24V AZM161SK-12/12RKT-M16-24V AZM161SK-12/12RKTD-M16-24V AZM161SK-12/12RKN-M16-24V AZM161SK-12/12RK-M16-110/230V AZM161SK-12/12RKEU-024 AZM161SK-12/12RKA-M16-24V AZM161SK-12/12RKA-M16-110/230V AZM161SK-12/03RK-M16-24V AZM161CC-12/12RKA-M16-24V AZM161SK-12/12K-M16-24V AZM161CC-12/12RK-M16-110/230V AZM161SK-12/12RKTU-024 AZM161SK-12/03RKA-M16-24V AZM161CC-12/12RK-M16-24V AZM161CC-12/12RKAT-M16-24V AZM161ST-11/12RKA-24V AZM 161CC-12/03RK-024 AZM 161CC-12/03RKA-024 AZM 161CC-12/12K-024 AZM 161CC-12/12KA-024 AZM 161CC-12/12RKA -110/230 AZM 161CC-12/12RKED-024 AZM 161CC-12/12RKED/TU-024 AZM 161CC-12/12RKEU-024 AZM 161CC-12/12RKN-024 AZM 161CC-12/12RKT-024 AZM 161CC-12/12RKTD-024 AZM 161CC-12/12RKTD -110/230 AZM 161CC-12/12RKTD/EU-024 AZM 161CC-12/12RKTU-024 AZM 161SK-12/03RK-024G AZM 161SK-12/12KA-024
