meetsensor distributes a full range of products including American OTTO rocker switches and momentary trigger switches, ensuring new, original and authentic products, and can provide product model pictures, parameters, technical data and official information.

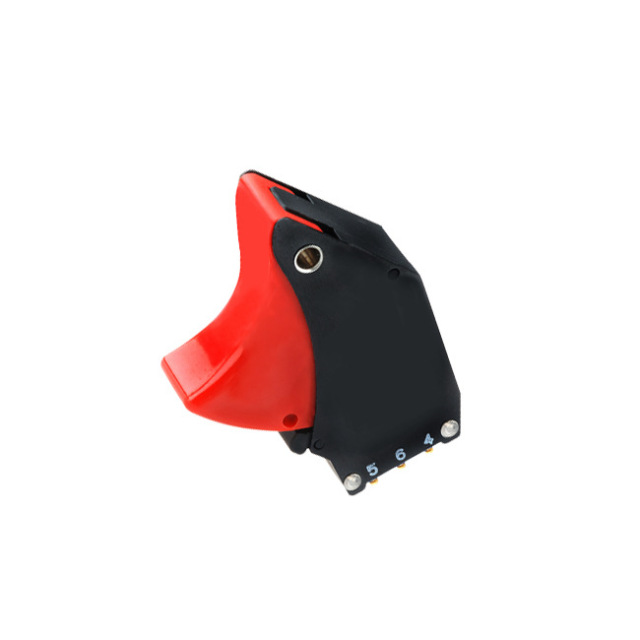

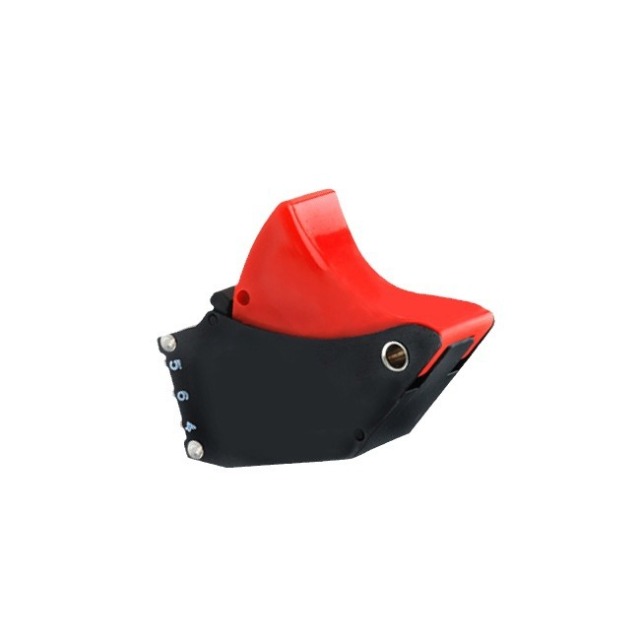

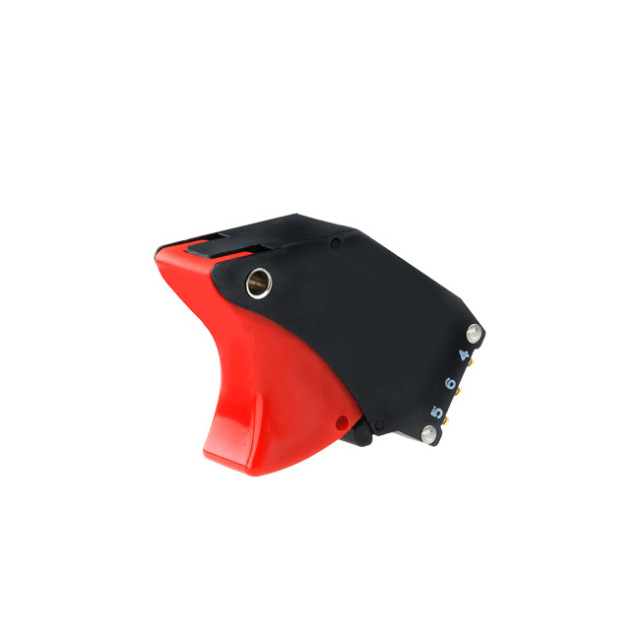

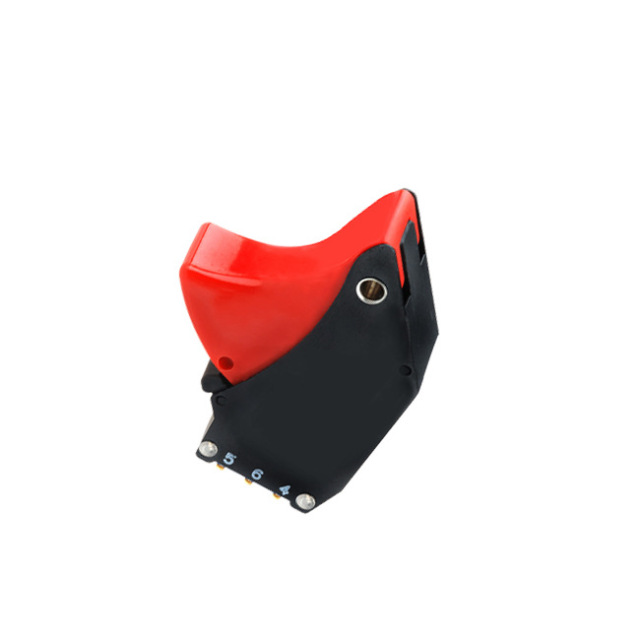

American TTO Rocker Switch Momentary Trigger Switch M8805111-01 / U2-016 Product Details:
The U2-016 precision trigger switch meets the M8805/111-01 military standard and has a width of 0.641" +/- 0.016".
This precision trigger switch has an actuation force of 2.25 lbs to actuate the first pole; 6.5 lbs to advance past the detent, and 6.0 lbs to advance after the detent. The housing is black thermoplastic, the trigger button is red thermoplastic, and the side covers are black anodized aluminum. The U2-016 is 0.641" wide and meets the military standard M8805/111-01.
feature
Two-step trigger
lComplies with M8805/111-01 standard
l2.25 lbs of driving force for the first rod
The additional force of 6.5 pounds through the brake drives the second rod
l0.641" +/- 0.016" Width
lRated 7 amps resistance @ 28VDC
lElectrical life 50,000 times
lRoHS compliant
Founded in 1961, OTTO Engineering is located in Carpentersville, Illinois, USA. It has been designing, developing and manufacturing control products and communication accessories for 60 years. Products are specially designed to meet customers' demanding application requirements.
OTTO is a vertically integrated manufacturer with in-house injection molding, stamping, CNC machining, cable assembly and cable overmolding capabilities. It also has strong mechanical, electrical and RF design engineering capabilities, test laboratories and computer-controlled production line testing capabilities.
OTTO by OTTO Controls and OTTO Communications Both divisions sell its products.
control
Our switches and control handles are at work every day in some of the most demanding applications including heavy equipment, aerospace, marine, medical, communications and other demanding markets.
Communications
OTTO Communications specializes in accessories for the two-way radio market including surveillance kits, wireless accessories, light and heavy duty headsets, speaker microphones, tactical, fire and hazmat communications equipment.
Similar models:
U2-016 M8805/111-01 U2-025 M8805/111-04 U2-037 MIL-PRF-8805 U2-054 U2-082 M8805/111-03 U2-084 M8805/111-06 U2-169 U2-605 U2-618
