Meetsensor Distributor USA O TTO Otto B2 Series Ultra-small A full range of products including basic switches and snap-action switches are guaranteed to be brand new, original and authentic. We can provide product model pictures, parameters, technical data and official information.

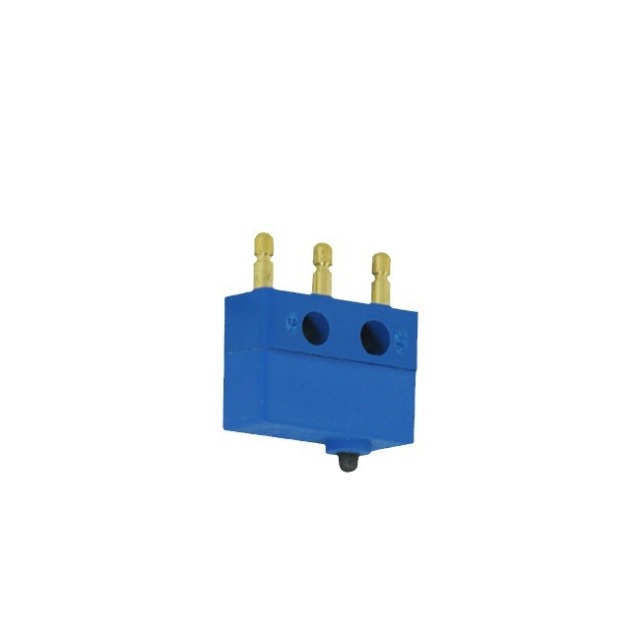

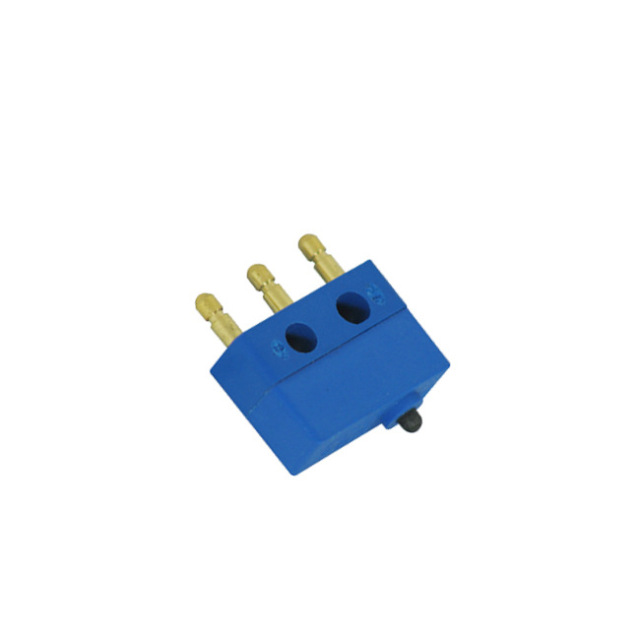

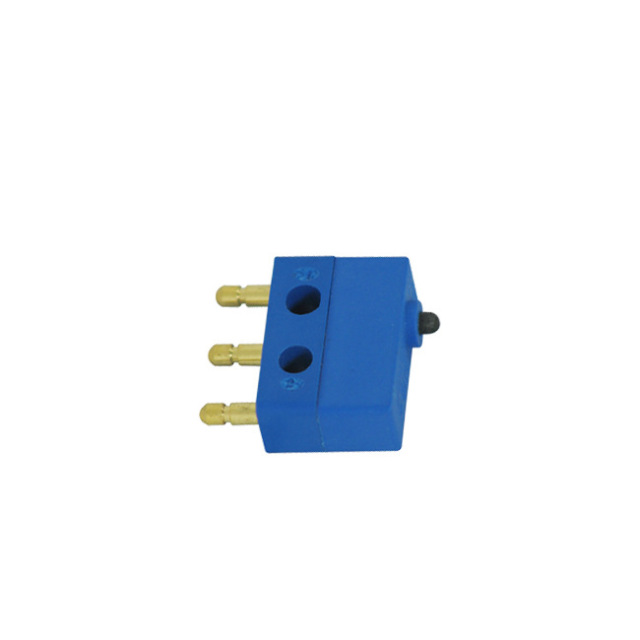

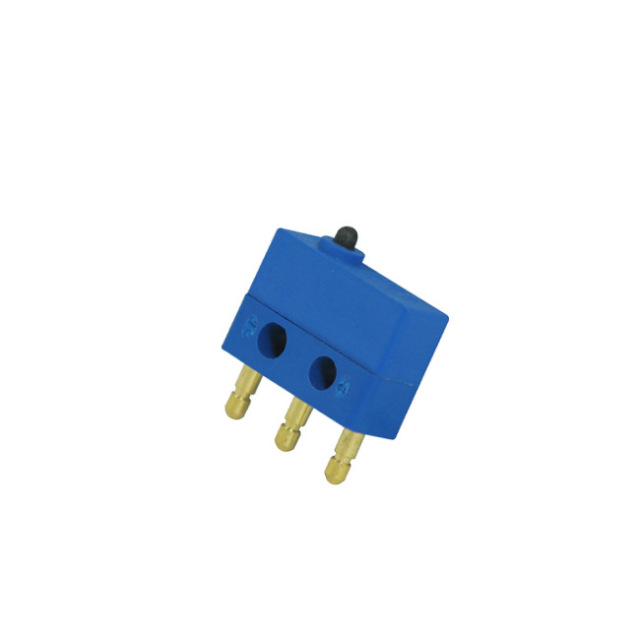

American TTO OTTO Subminiature Basic Switch Snap Action Switch B2-211353 / MS24547-2 Product Details:
The B2 Series is available in two widths and can be specified to suit your application. In addition to being available with an integral actuating stem like the B2-5 Series, the B2 Series is also available with the A1 Series auxiliary stem actuator as shown in Section B3.
While the B2 Series meets and complies with various military specifications, the same switches can be specified for commercial use, saving costs.
Both .156" and .200" wide models are available with turret, quick connect, and PCB style terminals in three lengths.
Whether it is a military or commercial application, OTTO can provide the features you choose for your application. You can specify the features you need without paying for the features you don't need.
OTTO B2 subminiature switches meet MIL-PRF-8805/4, MIL-PRF-8805/106 (high temperature -55°C to +200°C), and MIL-PRF-8805/109 standards and comply with the following standards. The basic switch is designed for miniature spaces using a cam or other limit actuator on a push button. In addition, a full range of toggle, push button, and lever actuators are available.
feature
l Available in 0.156" and 0.200" width models
l Up to 7 amps switching current
lSensitive sports differential
Low operating force
l Choose from 8 terminal styles or leads
lLong service life
lComplies with MIL-PRF-8805/4, MIL-PRF-8805/106
and MIL-PRF-8805/109 standards
lInstantaneous action
UL certification
lRoHS compliant
USA OTTO Engineering was founded in 1961 and is located in Carpentersville, Illinois, United States , 60 Years Design, development and manufacture of control products and communication accessories. Products are specially designed to meet customers' demanding application requirements.
OTTO is a vertically integrated manufacturer with in-house injection molding, stamping, CNC machining, cable assembly and cable overmolding capabilities. It also has strong mechanical, electrical and RF design engineering capabilities, test laboratories and computer-controlled production line testing capabilities.
OTTO by OTTO Controls and OTTO Communications Both divisions sell its products.
control
Our switches and control handles are at work every day in some of the most demanding applications including heavy equipment, aerospace, marine, medical, communications and other demanding markets.
Communications
OTTO Communications specializes in accessories for the two-way radio market including surveillance kits, wireless accessories, light and heavy duty headsets, speaker microphones, tactical, fire and hazmat communications equipment.
Similar models:
B2-11B321 B2-11B323 B2-11B331 B2-11B333 B2-11B341 B2-11B343 B2-11B351 B2-11B353 B2-11B361 B2-11B363 B2-11B421 B2-11B423 B2-11B431 B2-11B433 B2-11B441 B2-11B443 B2-11B451 B2-11B453 B2-11B461 B2-11B463 ◎ B2-11C321 B2-11C323 B2-11C331 B2-11C333 B2-11C341 B2-11C343 B2-11C351 B2-11C353 B2-11C361 B2-11C363 B2-11C421 B2-11C423 B2-11C431 B2-11C433 B2-11C441 B2-11C443 B2-11C451 B2-11C453 B2-11C461 B2-11C463 ◎ B2-11D321 B2-11D323 B2-11D331 B2-11D333 B2-11D341 B2-11D343 B2-11D351 B2-11D353 B2-11D361 B2-11D363 B2-11D421 B2-11D423 B2-11D431 B2-11D433 B2-11D441 B2-11D443 B2-11D451 B2-11D453 B2-11D461 B2-11D463 ◎ B2-11E321 B2-11E323 B2-11E331 B2-11E333 B2-11E341 B2-11E343 B2-11E351 B2-11E353 B2-11E361 B2-11E363 B2-11E421 B2-11E423 B2-11E431 B2-11E433 B2-11E441 B2-11E443 B2-11E451 B2-11E453 B2-211321 B2-211323 B2-211331 B2-211333 B2-211341 B2-211343 B2-211351 B2-211353 B2-211361 B2-211363 B2-211421 B2-211423 B2-211431 B2-211433 B2-211441 B2-211443 B2-211451 B2-211453 B2-211461 B2-211463 ◎ B2-212321 B2-212323 B2-212331 B2-212333 B2-212341 B2-212343 B2-212351 B2-212353 B2-212361 B2-212363 B2-212421 B2-212423 B2-212431 B2-212433 B2-212441 B2-212443 B2-212451 B2-212453 B2-212461 B2-212463 ◎ B2-213321 B2-213323 B2-213331 B2-213333 B2-213341 B2-213343 B2-213351 B2-213353 B2-213361 B2-213363 B2-213421 B2-213423 B2-213431 B2-213433 B2-213441 B2-213443 B2-213451 B2-213453 B2-213461 B2-213463 ◎ B2-214321 B2-214323 B2-214331 B2-214333 B2-214341 B2-214343 B2-214351 B2-214353 B2-214361 B2-214363 B2-214421 B2-214423 B2-214431 B2-214433 B2-214441 B2-214443 B2-214451 B2-214453 B2-214461 B2-214463 ◎ B2-215321 B2-215323 B2-215331 B2-215333 B2-215341 B2-215343 B2-215351 B2-215353 B2-215361 B2-215363 B2-215421 B2-215423 B2-215431 B2-215433 B2-215441 B2-215443 B2-215451 B2-215453 B2-215461 B2-215463 B2-11E461 B2-11E463
