Ultrasonic sensors, owing to their simple structure, low cost, and insensitivity to light and color, have been widely adopted in industrial automation, smart homes, robotic navigation, liquid level detection, and numerous other fields. However, many engineers and hobbyists frequently encounter issues such as detection failure, data jitter, and blind zone false triggering in practical applications, significantly compromising system reliability. This article systematically reviews practical techniques for optimizing ultrasonic sensor detection accuracy, starting from fundamental principle analysis, to help you thoroughly resolve the frustration of "object detection always failing."
I. Understanding the Working Principles and Limitations of Ultrasonic Sensors
Ultrasonic sensors measure distance by emitting high-frequency sound waves (typically 40 kHz) and receiving the echo. The ranging formula is: Distance = (Speed of Sound × Time) / 2. Behind this seemingly simple principle lie numerous factors affecting accuracy:
Inherent Limitations:
Blind Zone Issue: There exists a detection blind zone (typically 2–30 cm) directly in front of the sensor, within which objects cannot be accurately detected.
Beam Angle Constraint: Ultrasonic waves propagate in a conical pattern, with beam angles generally ranging from 15° to 60°, where energy at the edges decays severely.
Multipath Effect: Sound waves reflected off walls, floors, and other surfaces create indirect echoes, leading to misjudgments.
Sound-Absorbing Materials: Porous materials such as sponge, fabric, and foam absorb ultrasonic waves substantially, causing missed detections.
Temperature Sensitivity: The speed of sound varies with temperature (approximately 331 m/s at 0°C and 349 m/s at 30°C), directly impacting ranging accuracy.
Understanding these limitations is the first step toward optimization—many issues arise not because the sensor is "broken," but because it is being used improperly.
II. Hardware-Level Optimization Strategies
1. Proper Selection: The Right Sensor Is Half the Battle
Different application scenarios impose vastly different requirements on sensors:
Short-Range High-Precision Scenarios (e.g., robot obstacle avoidance, liquid level detection): Select models with small blind zones (<5 cm) and high accuracy (±1 mm), such as the US-100 or RCW-0001.
Long-Range Detection Scenarios (e.g., parking space detection, material level monitoring): Choose models with extended detection ranges (>10 m) and narrow beam angles, such as the UC2000 or industrial-grade ultrasonic modules.

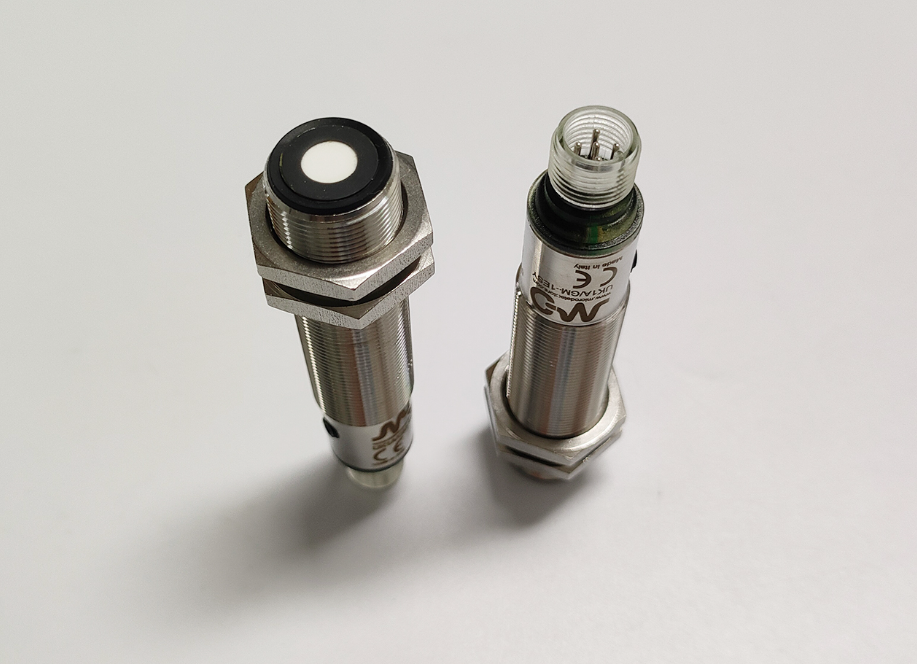

Harsh Environment Scenarios (outdoor, high humidity, dusty conditions): Opt for industrial sensors with temperature compensation and IP67 protection ratings to prevent rapid aging and failure of low-cost modules.
Multi-Sensor Arrays: For wide-area coverage requirements, employ multiple narrow-beam-angle sensors in combination rather than relying on a single wide-beam sensor.
2. Mounting Orientation and Mechanical Structure Optimization
The physical installation of the sensor directly affects detection performance:
Perpendicular Alignment: Ensure that the sensor's emitting surface is as perpendicular as possible to the surface of the object being measured. When the tilt angle exceeds 15°, echo energy decays sharply, leading to missed detections. For inclined surface detection, consider installing an angle compensation structure or using a dual-sensor cross layout.
Vibration Isolation: Mount the sensor on a shock-absorbing bracket to avoid emission signal distortion caused by mechanical vibration. This is particularly essential when operating near motors and pumps, where rubber vibration dampers are indispensable.
Rain and Dust Covers: For outdoor use, install acoustically transparent rain covers (materials should be PTFE or specially designed waterproof membranes) to protect the transducer without significantly attenuating sound waves. Never wrap the sensor in ordinary plastic film, as this causes severe acoustic attenuation.
Height and Angle Fine-Tuning: For mobile robots, the recommended sensor mounting height is the midpoint of typical obstacle heights (e.g., 20–40 cm), enabling detection of low obstacles while avoiding ground echo interference. A forward tilt of 5°–10° can mitigate ground reflection issues.
3. Power Supply and Signal Integrity
Ultrasonic sensors are sensitive to power supply quality, especially low-cost modules:
Independent Power Supply: Provide a dedicated regulated power supply for the sensor, avoiding shared power circuits with high-current devices such as motors and relays. Power supply ripple should be controlled within 50 mV.
Decoupling Capacitors: Place 100 nF ceramic capacitors and 10 μF electrolytic capacitors near the sensor's power pins to filter out high-frequency noise.
Shielded Cables: When signal cables exceed 30 cm, use shielded twisted pair cables with the shield grounded at a single end to reduce electromagnetic interference.
Level Matching: Ensure that the sensor's output level is compatible with the main controller chip. Add level-shifting circuits if necessary to avoid signal misjudgment.
III. In-Depth Software Algorithm Optimization
Hardware optimization lays the foundation; software algorithms are the key to improving accuracy.
1. Temperature Compensation Algorithm
The relationship between the speed of sound and temperature is: v = 331.4 + 0.607 × T (m/s, where T is in degrees Celsius). Ignoring temperature compensation can introduce errors exceeding 5% in environments with large temperature variations.
Implementation Approaches:
Integrate temperature sensors such as the DS18B20 to acquire ambient temperature in real time and dynamically correct the speed of sound parameter.
Establish a temperature-to-speed-of-sound lookup table to reduce real-time computational overhead.
For industrial-grade sensors, prioritize models with built-in temperature compensation to simplify system design.
2. Filtering and Data Smoothing
Raw ultrasonic data often contains impulse noise and random jitter and must be filtered:
Median Filtering: Collect N consecutive samples (e.g., 5) and take the median as the valid value, effectively eliminating sporadic impulse interference. Suitable for slowly changing scenarios.
Moving Average Filtering: Set a sliding window (e.g., 8 sampling points) and calculate the average. Simple and effective, but slower to respond to sudden changes.
Kalman Filtering: For mobile platforms (e.g., AGVs, drones), Kalman filtering can fuse ultrasonic data with motion models to obtain optimal estimates in dynamic environments. More complex to implement, but delivers superior results.
Amplitude Limiting Filter: Set a reasonable maximum rate-of-change threshold and discard data points exceeding the threshold as outliers. Suitable for scenarios where obstacles are relatively stable.
3. Multi-Sensor Fusion Strategies
Single sensors have inherent blind zones and uncertainties; multi-sensor fusion is the ultimate solution for enhancing reliability:
Cross-Validation: Deploy two or more sensors covering the same area. Only trigger an action when multiple sensors simultaneously confirm the presence of a target, substantially reducing the false alarm rate.
Triangulation: Using two sensors with a known separation distance, calculate the precise target location through time-difference or angle-difference measurements, overcoming the angular resolution limitations of a single sensor.
Heterogeneous Fusion: Combine ultrasonic sensors with infrared, LiDAR, and vision sensors. Ultrasonic excels at short-range distance measurement, LiDAR is suitable for medium-to-long ranges, and vision provides semantic information. Together, they complement each other to build a robust perception system.
4. Timing and Trigger Strategy Optimization
Avoiding Crosstalk: When multiple ultrasonic sensors operate simultaneously, one sensor's echo may be received by another, causing crosstalk. Solutions include time-division multiplexing (triggering in rotation with intervals >50 ms), frequency-division multiplexing (using sensors with different frequencies), or coded transmission (each sensor emits a specific coded pulse).
Dynamic Threshold Adjustment: Adaptively adjust the receiver sensitivity threshold based on ambient noise levels. Increase sensitivity to extend range in quiet environments; decrease sensitivity to reduce false triggering in noisy environments.
Multiple Sampling Confirmation: Perform consecutive detection attempts on suspected targets and only confirm target presence when N consecutive (e.g., 3) consistent results are obtained, avoiding single-event misjudgment.
IV. Environmental Adaptability Optimization
1. Addressing Sound-Absorbing Materials
For sound-absorbing objects such as sponge, fabric, and plush toys:
Lower the detection frequency (e.g., to 25 kHz), as low-frequency sound waves have stronger penetration and are less easily absorbed.
Increase emission power (within transducer limits) to improve the echo signal-to-noise ratio.
Reduce detection distance, as sound-absorbing materials still produce sufficient echoes at close range.
2. Addressing Smooth Inclined Surfaces and Specular Reflection
Glass, smooth metal, and similar surfaces tend to produce specular reflection, causing sound waves to deviate from the receiver:
Increase the number of sensors to cover the detection area from different angles.
Apply diffuse reflective tape or roughen the surface to be measured (if feasible).
Select sensors with wider beam angles to increase the probability of receiving echoes.
3. Addressing Airflow and Wind Speed
Strong airflow (e.g., near air conditioning vents, fans) disturbs the propagation path of sound waves:
Avoid installing sensors in areas with direct airflow.
Add wind shields and design airflow diversion structures if necessary.
When wind speed exceeds 10 m/s, consider alternative sensing principles (e.g., millimeter-wave radar).
V. Debugging and Calibration Techniques
1. Establishing a Detection Map
For fixed-installation scenarios, use host computer software to record sensor detection results at different positions and angles, drawing a detection capability map to identify effective coverage areas and blind zone locations, guiding subsequent layout optimization.
2. Calibration and Adjustment
Distance Calibration: Use standard gauge blocks or a laser rangefinder as a reference. Collect ultrasonic data at multiple distance points (e.g., 10 cm, 50 cm, 100 cm, 200 cm) to establish a mapping table between actual distance and measured values, correcting nonlinear errors.
Angle Calibration: Rotate the object being measured or the sensor, recording detection success rates at different angles to plot a directional pattern and determine the effective beam angle range.
3. Log Analysis and Fault Diagnosis
Enable detailed logging, including: raw time values for each detection, calculated distance, temperature compensation parameters, pre- and post-filtering data, and exception flags. When detection fails, use the logs to quickly identify whether the cause is hardware failure, environmental change, or algorithmic defect.
VI. Typical Scenario Optimization Examples
Example 1: Smart Trash Bin Overflow Detection
Problem: Irregularly shaped trash inside the bin causes frequent false alarms from the ultrasonic sensor.
Optimization Solution: Install two ultrasonic sensors on the inner side of the bin lid at a 120° angle facing downward; employ median filtering combined with dual-sensor cross-validation; set dynamic thresholds to adjust sensitivity based on trash type (dry/wet waste); add temperature compensation to avoid summer/winter errors.
Example 2: AGV Forklift Fork Positioning
Problem: When inserting forks into pallets, the ultrasonic sensor must precisely locate pallet holes, but complex reflections from metal pallet edges cause issues.
Optimization Solution: Select industrial sensors with a narrow beam angle (15°); align the mounting height with the pallet hole center; employ Kalman filtering fused with encoder data; switch to high-frequency sampling mode (20 Hz) when approaching the target to improve dynamic response.
Example 3: Outdoor Parking Space Detection
Problem: Detection fails during rain and snow, and fallen leaves cause false judgments.
Optimization Solution: Select IP67-rated sensors with acoustically transparent rain covers; adopt a dual-sensor vertical cross layout to distinguish vehicles from low obstacles; introduce rainfall detection to automatically raise thresholds and reduce sensitivity during heavy rain; integrate geomagnetic sensors for auxiliary judgment.
VII. Conclusion
Ultrasonic sensor detection failure is not an insurmountable problem but rather a systems engineering challenge. From selection matching, mechanical installation, and power supply design to temperature compensation, filtering algorithms, and multi-sensor fusion, every stage impacts final accuracy. The core optimization philosophy can be summarized as: hardware ensures the baseline, algorithms raise the ceiling, and fusion builds reliability. In practical projects, it is recommended to establish an iterative optimization process of "problem-hypothesis-validation": first locate the failure mode through logging, then apply the above tips in a targeted manner, and finally verify the results through extensive testing. With the advancement of MEMS technology and digital signal processing, new-generation ultrasonic sensors are evolving toward integration and intelligence. Nevertheless, mastering these underlying optimization principles remains the essential approach for tackling complex scenarios of all kinds.
